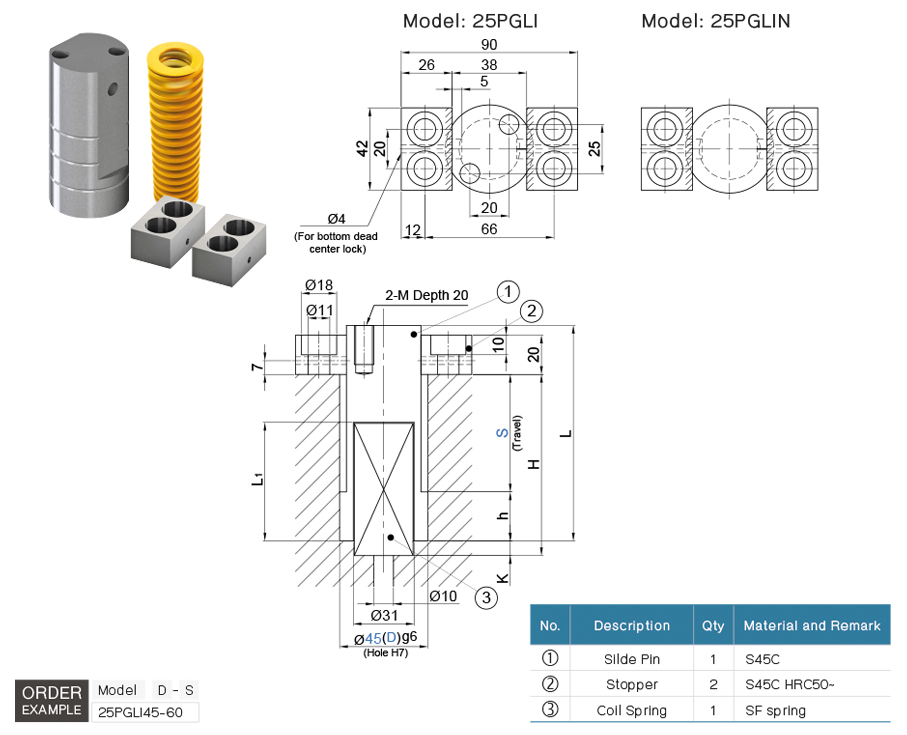

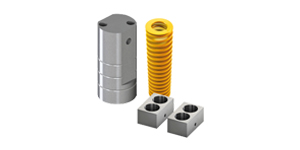

Embed Lifter Unit for Progressive Die
Embed Lifter Unit for metal stamping die transfer system.
Select holes type:
- 25PGLI (standard)
- 25PGLIN (no hole)
Spring Color Code: SF (yellow)
more
- Model 25PGLI/25PGLIN
- Manufacturer Code PGLI/PGLIN/PGLF/PGLFN
View Online
Download
Swipe
| Model | D | Stroke S |
H | K | L | L1 | h | Spring | ||
| OdxL | Initial Load (N) | Final Load (N) | ||||||||
| 25PGLI 25PGLIN |
45 | 40 | 74 | 9 | 90 | 60 | 25 | 30x125 | 181 | 637 |
| 60 | 92.5 | 7.5 | 110 | 75 | 25 | 30x150 | 71 | |||
| 80 | 120 | 5 | 140 | 105 | 35 | 30x200 | 71 | |||
