Embed Lifter Unit SFL

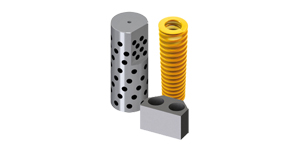

Embed Lifter Unit for metal stamping die transfer system.

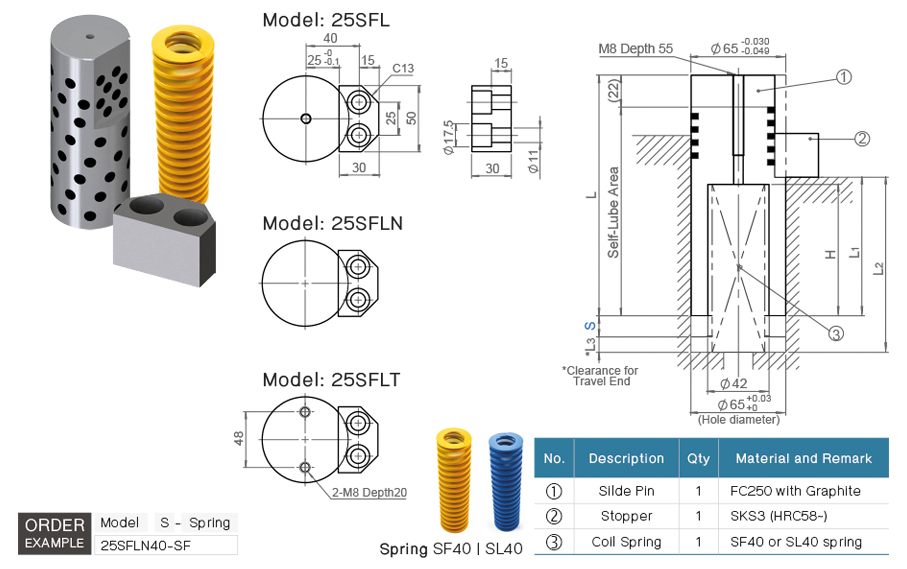

Select holes type:
- 25SFL (standard)
- 25SFLN (no hole)
- 25SFLT (tapped holes)
Spring color code: SF (yellow), SL (blue)
more
- Model 25SFL/25SFLN/25SFLT
- Manufacturer Code SFL/FL/SFLN/SFLT/FLN/FLT
View Online
Download
Swipe
| Model | Stroke S |
Spring | H | L | L1 | SF Type | ||||||
| L2 | L3 | Spring | Initial | Final | ||||||||
| Free Length | Length | Load (N) | Length | Load (N) | ||||||||
| 25SFL 25SFLN 25SFLT |
15 | SF | 96 | 170 | 100 | 125 | 10 | 150 | 121 | 485 | 106 | 735 |
| 40 | 75 | 175 | 146 | 415 | 988 | |||||||
| 60 | 55 | 200 | 166 | 428 | 1178 | |||||||
Swipe
| Model | Stroke S |
Spring | H | L | L1 | SL Type | ||||||
| L2 | L3 | Spring | Initial | Final | ||||||||
| Free Length | Length | Load (N) | Length | Load (N) | ||||||||
| 25SFL 25SFLN 25SFLT |
15 | SL | 96 | 170 | 100 | 125 | 10 | 150 | 121 | 1022 | 106 | 1551 |
| 40 | 75 | 125 | 10 | 175 | 146 | 876 | 106 | 2084 | ||||
| 60 | 55 | 140 | 25 | 200 | 181 | 502 | 121 | 2088 | ||||
