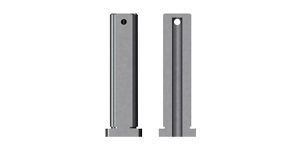

Lifter Pins with Air Hole
Lifter Pins with Air Hole for metal stamping die transfer system.
Model: 25LJS
more
- Model 25LJS
- Manufacturer Code LJS
View Online
Download
Swipe

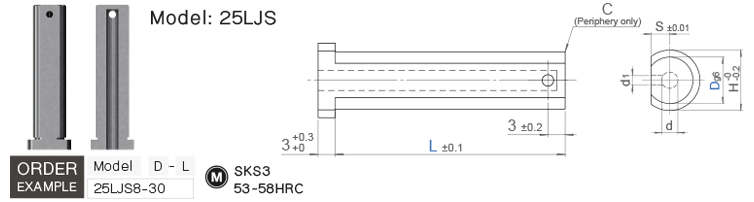

| Model | D g6 | L | H | d | d1 | S | C | |||||
| 25LJS | 4 | -0.004 -0.012 |
25 28 30 34 40 | 6 | 2.0 | 1.5 | 1.75 | 0.3 | ||||
| 6 | 8 | 2.5 | 2 | |||||||||
| 8 | -0.005 -0.014 |
10 | 3.5 | 2.0 | 3 | 0.5 | ||||||
| 10 | 13 | 4 | ||||||||||
