Detachable Guide Lifter

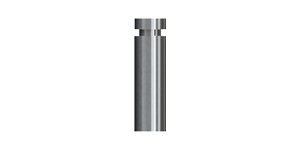

Detachable Guide Lifter standard component for metal stamping die transfer system.

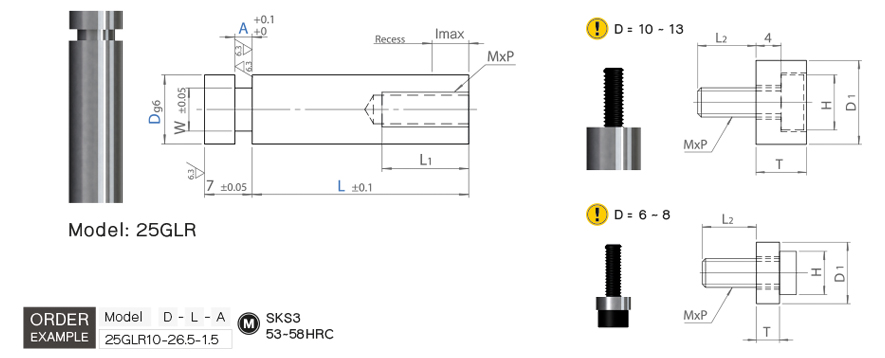

Model: 25GLR
more
- Model 25GLR
- Manufacturer Code GLR
View Online
Download
Swipe
| Model | D g6 | 0.1mm increment | W | D1 | T | MxP | H | l1 | l2 | lmax | ||
| L | A | |||||||||||
| 25GLR | 6 | -0.004 -0.012 |
20.0 – 60.0 | 0.5 – 3.0 | 3.6 | 8 | 3 | M3x0.5 | 5.5 | 15 | 9 | 6 |
| 8 | -0.005 -0.014 |
20.0 – 60.0 | 0.7 – 4.0 | 5 | 10 | 3 | M4x0.7 | 7 | ||||
| 10 | 26.0 – 70.0 | 0.7 – 4.0 | 6 | 13 | 8 | M4x0.7 | 7 | 21 | 11 | 10 | ||
| 13 | -0.006 -0.017 |
26.0 – 80.0 | 1.0 – 6.0 | 7 | 16 | 9 | M5x0.8 | 8.5 | ||||
