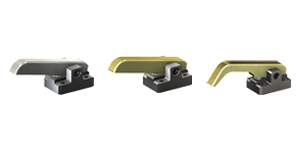

Sheet Lifters
Sheet Lifters for lifting material plate to feed into die metal stamping machine. Standard die transfer component for metal stamping die.
Choose from lifter materials:
- Steel (S45C) : 25SLCE-I (Optional induction harden, or nickels plating)
- Bronze (Copper Alloy) : 25SLCE-W, 25SLC-W
more

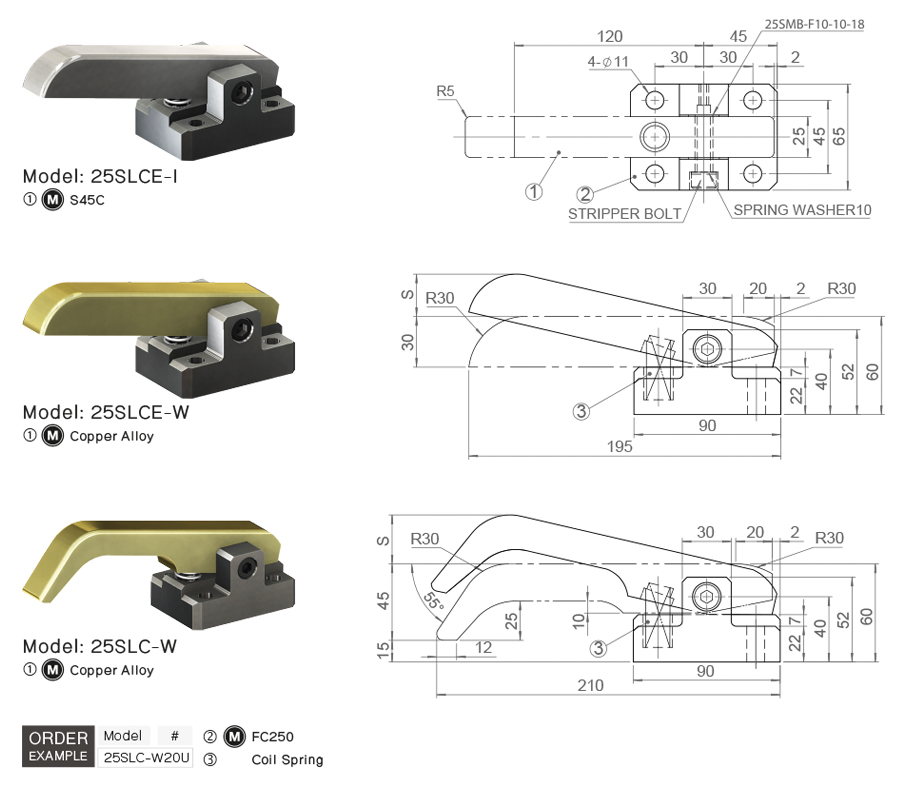

- Model 25SLCE-I/25SLCE-W/25SLC-W
- Manufacturer Code SLCE-I/SLCE-W/SLC-W/SLC/SLCES/SLCE
View Online
Download
Swipe
| Model | # | Coil Spring | Stroke S |
Min Lifting Load | Max Lifting Load | Min Spring Load | Max Spring Load | |||||
| DxL | Color | N | kgf | N | kgf | N | kgf | N | kgf | |||
| 25SLCE–I 25SLCE–W 25SLC–W |
20U | 17x50 | Light Blue | 20 | 18.3N | 1.9kgf | 24.5 | 2.5kgf | 73N | 7.5kgf | 98N | 10kgf |
| 20R | 17x50 | Ivory | 3kgf | 39.2 | 4kgf | 117N | 12kgf | 157N | 16kgf | |||
| 20S | 17x50 | Orange | 54.9N | 5.6kgf | 73.5 | 7.5kgf | 220N | 22.5kgf | 294N | 30kgf | ||
| 25U | 17x50 | Light Blue | 25 | 16.9N | 1.7kgf | 24.5 | 2.5kgf | 67N | 6.9kgf | 98N | 10kgf | |
| 25R | 17x50 | Ivory | 27N | 2.8kgf | 39.2 | 4kgf | 108N | 11kgf | 157N | 16kgf | ||
| 25S | 17x50 | Orange | 51N | 5.2kgf | 73.5 | 7.5kgf | 202N | 20.6kgf | 294N | 30kgf | ||
