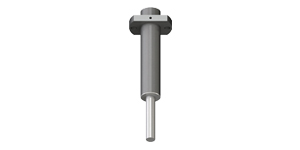

Pre-Holding Push Pin Sets (Economy)
Pre-Holding Push Pin Sets (Economy) standard locating component for metal stamping die.
Steel Tip Model: 25S-PAP–E
Urethane Tip Model: 25S-PAP-EU
more

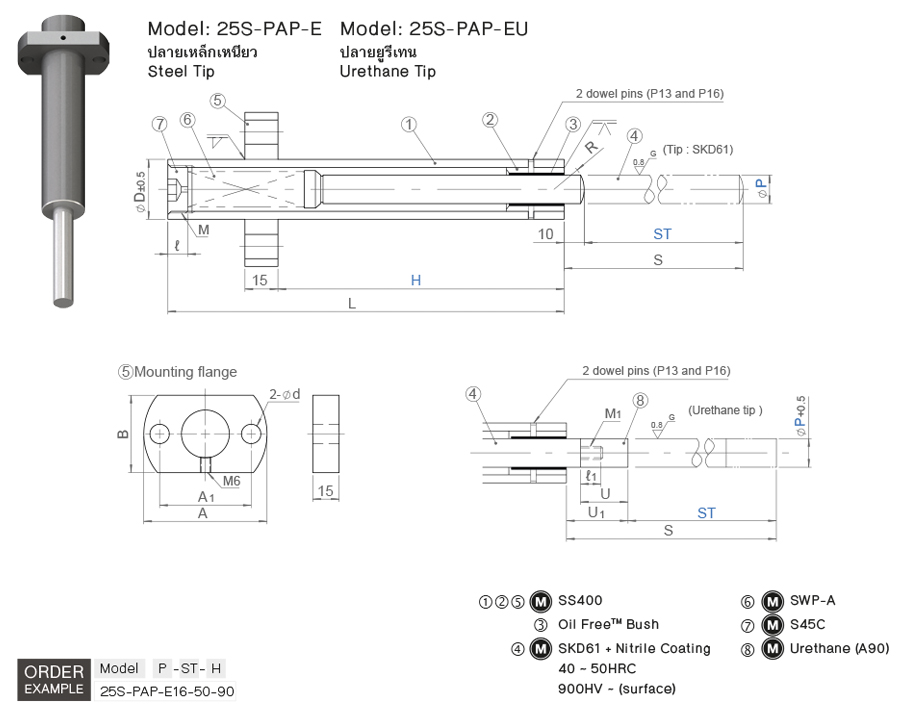

- Model 25S-PAP-E/25S-PAP-EU
- Manufacturer Code S-PAP-E/S-PAP-EU/PAEZS/PAEZU
View Online
Download
Swipe
| Model | P | ST | H 1mm increments |
Case | Pushing Pin | Mounting Flange | FL | Spring Constant N/mm (kgf/mm) |
Initial Load | Max Load | S | L | ||||||||||
| D | ℓ | M | R | U | U1 | M1 | ℓ1 | A | A1 | B | d | N (kgf) | Steel | Urethane | ||||||||
| 25S-PAP-E 25S-PAP-EU |
13 | 50 | 0 ~ 95 | 27.2 | 10 | 22 | 20 | 15 | 20 | M6 | 9 | 70 | 52 | 40 | 11 | 90 | 0.63 (0.064) |
7.8 (0.8) |
39.2 (4.0) |
60 | 70 | 115 |
| 100 | 0 ~ 170 | 175 | 0.32 (0.033) |
110 | 120 | 190 | ||||||||||||||||
| 150 | 0 ~ 250 | 270 | 0.21 (0.021) |
160 | 170 | 270 | ||||||||||||||||
| 16 | 50 | 0 ~ 100 | 34 | 10 | 26 | 25 | 20 | 25 | M8 | 12 | 80 | 60 | 50 | 11 | 90 | 0.80 (0.082) |
9.8 (1.0) |
49 (5.0) |
60 | 75 | 120 | |
| 100 | 0 ~ 175 | 175 | 0.39 (0.040) |
110 | 125 | 195 | ||||||||||||||||
| 150 | 0 ~ 255 | 270 | 0.26 (0.027) |
160 | 175 | 275 | ||||||||||||||||
| 200 | 0 ~ 330 | 350 | 0.20 (0.020) |
8.8 (0.9) |
210 | 225 | 350 | |||||||||||||||
| 20 | 50 | 0 ~ 110 | 42.7 | 12 | 33 | 30 | 25 | 30 | M10 | 15 | 90 | 70 | 60 | 13 | 90 | 0.95 (0.097) |
9.8 (1.0) |
58.8 (6.0) |
60 | 80 | 130 | |
| 100 | 0 ~ 185 | 175 | 0.48 (0.049) |
110 | 130 | 205 | ||||||||||||||||
| 150 | 0 ~ 260 | 260 | 0.32 (0.033) |
160 | 180 | 280 | ||||||||||||||||
| 200 | 0 ~ 340 | 330 | 0.23 (0.024) |
210 | 230 | 360 | ||||||||||||||||
| 250 | 0 ~ 410 | 425 | 0.20 (0.020) |
8.8 (0.9) |
260 | 280 | 430 | |||||||||||||||
