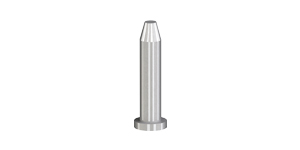

Locating Pins IKPD

Locating Pins standard locating component for metal stamping die.

Models: 25IKPDA, 25IKPDB, 25IKPDC, 25IKPDE

more
  • Model 25IKPDA/25IKPDB/25IKPDC/25IKPDE
  • Manufacturer Code IKPDA/IKPDB/IKPDC/IKPDE
Brand
OIL FREE
OIL FREE
  • Type

    Locating Pin

Swipe

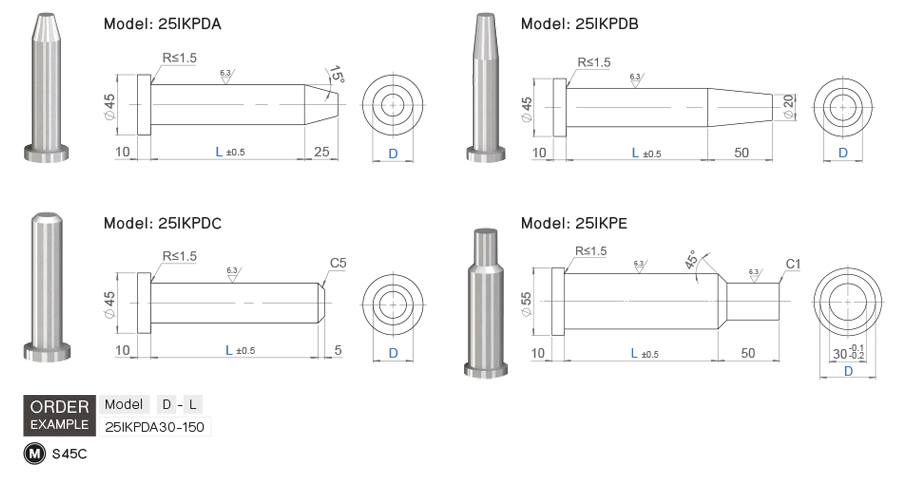

Locating Pins IKPD drawing
Model D L
5mm increments
25IKPDA
25IKPDB
25IKPDC		 30 -0.1
-0.2		 110 ~ 200
25IKPE 45 -0.1
-0.2		 110 ~ 200
