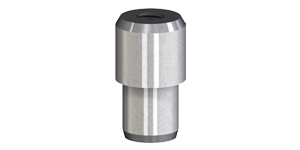

Locating Pins TLPC
Locating Pins standard locating component for metal stamping die.
Model: 25TLPC
more
- Model 25TLPC
- Manufacturer Code TLPC
View Online
Download
Swipe

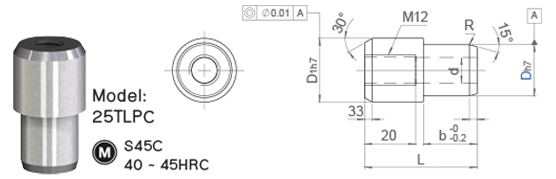

| Model | D h7 | D1 h7 | L | R | d | b | ||
| 25TLPC | 20 | 0 -0.021 |
25 | 0 -0.021 |
44 | 3 | 10.5 | 21 |
Swipe
Locating Pins standard locating component for metal stamping die.
Model: 25TLPC
| Model | D h7 | D1 h7 | L | R | d | b | ||
| 25TLPC | 20 | 0 -0.021 |
25 | 0 -0.021 |
44 | 3 | 10.5 | 21 |
