Locating Pilot Pins PST

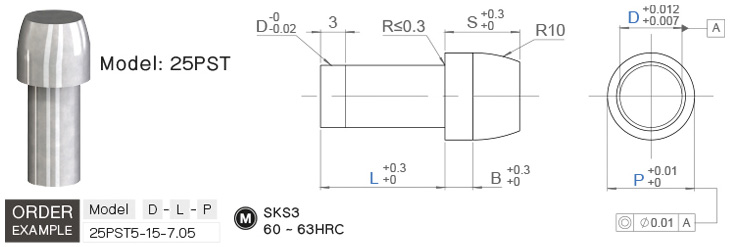

Locating Pilot Pins standard locating component for metal stamping die.
Model: 25PST
more
- Model 25PST
- Manufacturer Code PST
View Online
Download
Swipe
| Model | D | L | P 0.01 increments |
B | S |
| 25PST | 1 | 12 | 1.50 ~ 3.00 | 1 | 4 |
| 2 | 12 15 |
2.50 ~ 4.00 | 5 | ||
| 3 | 4.00 ~ 6.00 | 2 | 6 | ||
| 4 | 5.00 ~ 7.00 | 7 | |||
| 5 | 6.00 ~ 8.00 | ||||
| 6 | 7.00 ~ 9.00 | 8 | |||
| 8 | 15 | 9.00 ~ 13.00 | 3 | 9 | |
| 10 | 18 | 11.00 ~ 15.00 |
