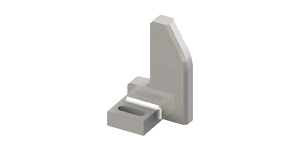

Nest Guides (Upper Die Relief)
Nest Guides (Upper Die Relief) standard locating component for metal stamping die.
Model: 25SNGU
more
- Model 25SNGU
- Manufacturer Code SNGU/NGUA
View Online
Download
Swipe
| Model | 5mm increments | Mounting Bolt M |
||||
| L | H | S | X (S – X) ≥ 30 |
Y (L – Y) ≥ 40 |
||
| 25SNGU 25SNGU–R 25SNGU–L 25SNGU–RN 25SNGU–LN |
75 ~ 100 | 20 ~ 40 | 50 ~ 100 | 20 ~ 70 | 35 ~ 60 | M10 M12 |
| 105 ~ 150 | 65 ~ 110 | |||||
| 155 ~ 200 | 115 ~ 160 | |||||
