Side Gauge (Cam Type)

Side Gauge (Cam Type) standard locating component for metal stamping die.

Model: 25SGCT

more
  • Model 25SGCT
  • Manufacturer Code SGCT/SGCM
Brand
OIL FREE
OIL FREE
  • Type

    Side Gauge

Swipe

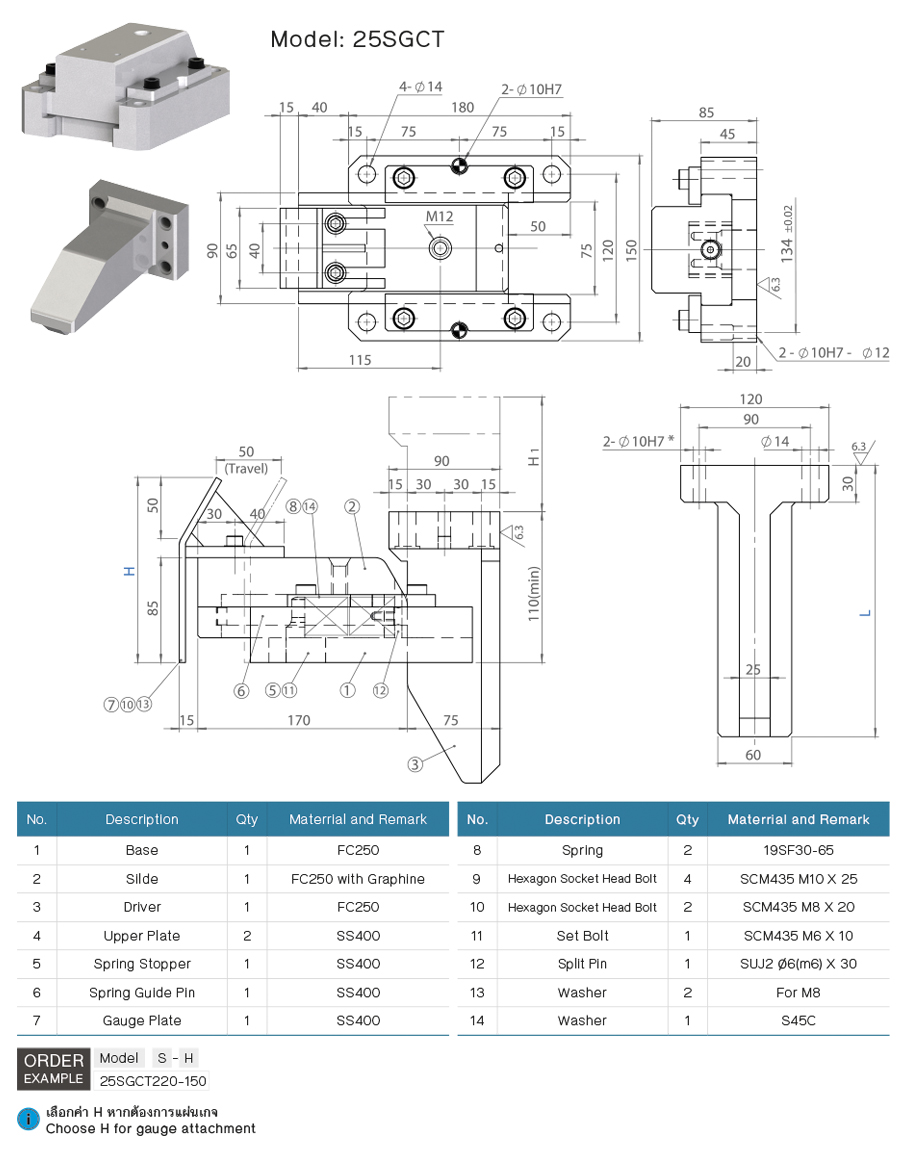

Side Gauge (Cam Type) drawing
Model L H H1 Spring
Initial Load (N) Final Load (N)
25SGCT 220 150 168.66 141.4 685.3
200
250
300 150 248.66
200
250
