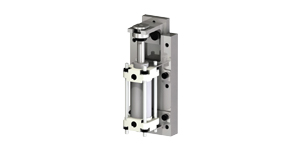

Disappearing Gauge SODA-B
Disappearing Gauge standard locating component for metal stamping die.
Model: 25SODA-B
more
- Model 25SODA-B
- Manufacturer Code SODA-B/DAB
View Online
Download
Swipe

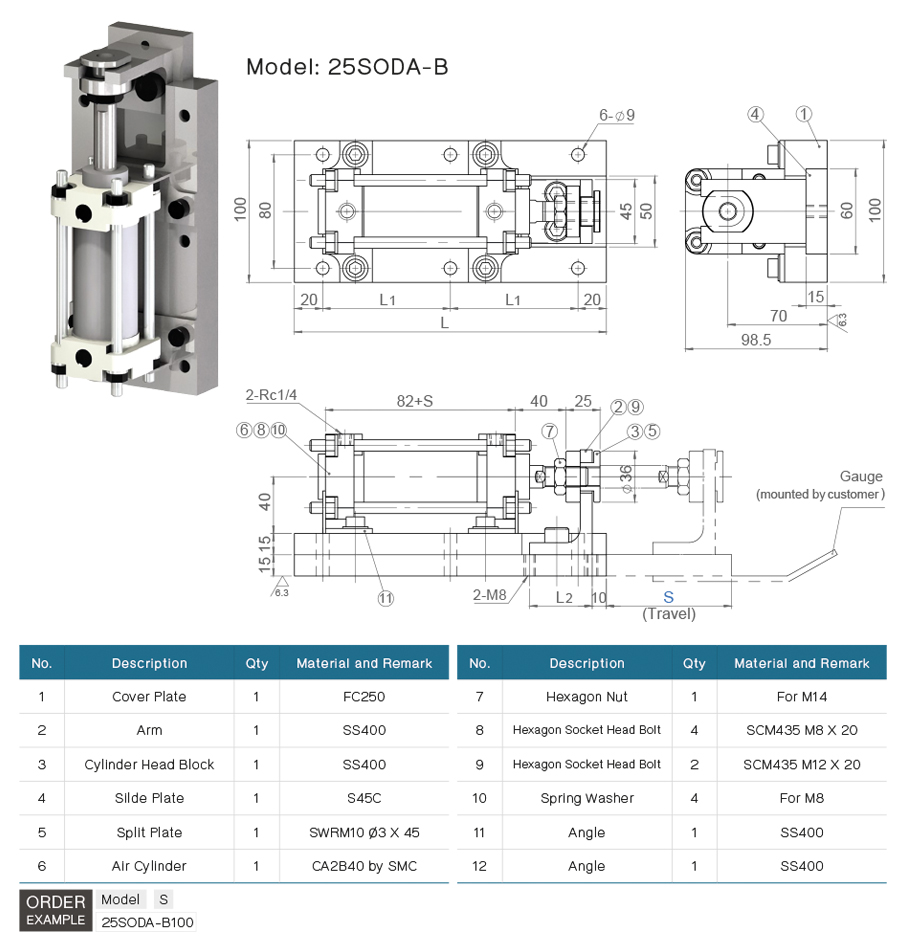

| Model | S | L | L1 | L2 | Weight (kg) |
| 25SODA–B | 50 | 220 | 90 | 25 | 11.2 |
| 100 | 270 | 115 | 45 | 13.5 | |
| 150 | 320 | 140 | 95 | 16.0 | |
| 200 | 370 | 165 | 145 | 18.7 |
