Punch Stripper Unit

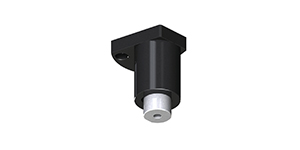

Punch Stripper Unit sold in whole set with spring and washer. Standard punch stripper component for stamping die.
Select model from punch holes shape.
Model: 25PSUB / 25PSUA / 25PSUE / 25PSUR
more
- Model 25PSUB/25PSUA/25PSUE/25PSUR
- Manufacturer Code PSUB/PSUA/PSUE/PSUR/BPSA/BPSB/BPSE/BPSR
View Online
Download
Swipe
| Model | D | Punch Length | 25PSUA | 25PSUR | 25PSUE | ||
| P 0.1mm increment |
P 0.1mm increment |
W 0.1mm increment |
P 0.1mm increment |
W 0.1mm increment |
|||
| 25PSUB 25PSUA 25PSUR 25PSUE |
10 | 80 | 3.0 – 11.0 | 3.0 – 8.0 | 3.0 – 8.0 | 3.1 – 11.0 | 3.0 – 10.8 |
| 90 | |||||||
| 13 | 80 | 3.0 – 14.0 | 3.0 – 10.1 | 3.0 – 10.1 | 3.1 – 14.0 | 3.0 – 13.8 | |
| 90 | |||||||
| 16 | 90 | 3.0 – 17.0 | 3.0 – 12.3 | 3.0 – 12.3 | 3.1 – 17.0 | 3.0 – 16.8 | |
Swipe
| D | Punch Length | ST | T | t1 | H | t2 | H1 | E | h | t3 | C | F | G | D0 | D1 | K | L | W | d | B | a | Spring | Capped Screw |
| 10 | 80 | 12 | 44 | 4.5 | 23 | 5 | 45 | 9 | 18 | 4 | 21 | 20 | 9 | 20 | 33 | 44 | 49.5 | 27 | 9 | 13 | 1.5 | 19SL27-030 | 24CB8x60 |
| 90 | 11.2 | 50 | 5.5 | 27.2 | 55 | 8 | 23.8 | 1.3 | 19SM27-035 | ||||||||||||||
| 13 | 80 | 12 | 44 | 4.5 | 23 | 45 | 9 | 18 | 23 | 26 | 1.5 | 19SL27-030 | |||||||||||
| 90 | 11.2 | 50 | 5.5 | 27.2 | 55 | 8 | 23.8 | 1.3 | 19SM27-035 | ||||||||||||||
| 16 | 90 | 16 | 53 | 5 | 28 | 4.5 | 55 | 13 | 24 | 3 | 26 | 24 | 13.5 | 30 | 41 | 50 | 60.5 | 36 | 11 | 19 | 1.5 | 19SL35-040 | 24CB10x60 |
