Straight Pilot Punch
Straight Pilot Punch for metal stamping die.
1. Choose punch material and coating

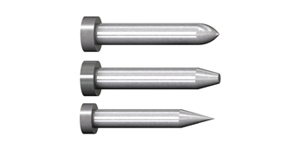

2. Choose tip shape (Radius Tip, Taper Tip, Point Tip)
3. Choose dimensions
more
View Online
Download
Swipe
| Order Code | L | P 0.01 mm increment |
A | T | Y | H | |||||||
| Model | No. | ||||||||||||
| Model Code |
10 | 42 | 52 | 62 | 72 | 82 | 92 | 102 | 8.00 – 10.00 | (10) (15) (20) 25 30 |
5 | 5 | 13 |
| 13 | 42 | 52 | 62 | 72 | 82 | 92 | 102 | 10.00 – 13.00 | 8 | 16 | |||
| 16 | 42 | 52 | 62 | 72 | 82 | 92 | 102 | 13.00 – 16.00 | 19 | ||||
| 20 | 52 | 62 | 72 | 16.00 – 20.00 | 23 | ||||||||
| 25 | 52 | 62 | 72 | 20.00 – 25.00 | 28 | ||||||||
