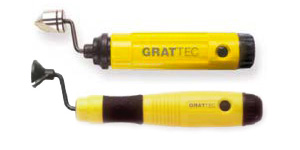

Hand Countersink and Swivel Blade (E)
Swivel and Rotating countersink and external countersink blade (E size except 08EL3500GT) with handle for hole and rods end deburring by hand. Grattec yellow handle with interchangeable countersink tool bit.
more
- Manufacturer Code EL6500GT/SG1100GT/EL3500GT/GT-BC3200/GT-BC6300/GT-BC8300/GT-BC1040/GT-BC1650/GT-BC22011/GT-BC1040TIN/GT-EX2000
View Online
Download
Swipe

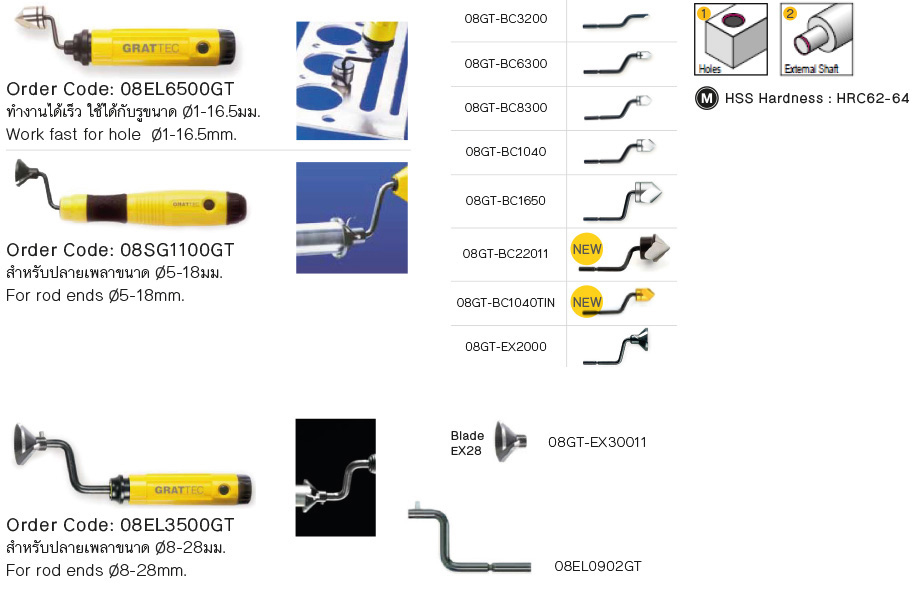

| Order Code |
Set Includes | |
| Handle | Blades | |
| 08EL6500GT | 08EL2100GT | 08GT-BC1650 |
| 08SG1100GT | 08SG3000GT | 08GT-EX2000 |
| 08EL3500GT | 08EL1000GT 08RD950001 |
08GT-EX30011 |
Swipe
| Order Code | Blade Name |
วัสดุ Material |
แพ็คบรรจุ Package Size |
องศา Angle |
ระยะรูที่ใช้งาน Countersink Range |
การใช้งาน Usage |
| 08GT-BC3200 | RD3.2 | HSS | 1 pc | 90° | 0-3mm | Countersink (1) |
| 08GT-BC6300 | RD6.3 | HSS | 1 pc | 90° | 1-6.3mm | Countersink (1) |
| 08GT-BC8300 | RD8.3 | HSS | 1 pc | 90° | 1-8.3mm | Countersink (1) |
| 08GT-BC1040 | RD10.4 | HSS | 1 pc | 90° | 1-10.4mm | Countersink (1) |
| 08GT-BC1650 | RD16.5 | HSS | 1 pc | 90° | 1-16.5mm | Countersink (1) |
| 08GT-BC22011 | RD20 | HSS | 1 pc | 90° | 1-20mm | Countersink (1) |
| 08GT-BC1040TIN | RD10. TiN |
HSS+TiN | 1 pc | 90° | 1-10.4mm | Countersink (1) for hard material |
| 08GT-EX2000 | EX18 | HSS | 1 pc | 90° | 5-18mm | External Shaft (2) |
