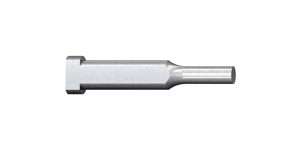

Shoulder Punch with Flat
Shoulder Punch with Flat for metal stamping die.
1. Choose punch material and coating
2. Choose tip shape & length
3. Choose dimensions
more
View Online
Download
Swipe
| Order Code | L 10mm increment |
0.01 mm increment | B | H | |||||||
| Shape A | Shape D R E G | ||||||||||
| Model | Shape | Tip Length | D m5 | P | P,K Max | P,W Min | W Max | ||||
| Model Code |
A D R E G |
S | 10 | +0.012 +0.006 |
40 ~ 100 | 3.00 – 7.80 | 9.97 | 2.50 | 7.80 | 13 (L40 B=8) |
13 |
| 13 | +0.015 +0.007 |
40 ~ 100 | 6.00 – 10.80 | 12.97 | 3.00 | 10.80 | 16 | ||||
| 16 | 40 ~ 100 | 10.00 – 13.80 | 15.97 | 4.00 | 13.80 | 19 (L40 B=8) |
19 | ||||
| 20 | +0.017 +0.008 |
40 ~ 100 | 13.00 – 17.80 | 19.97 | 5.00 | 17.80 | 23 | ||||
| 25 | 40 ~ 100 | 18.00 – 22.80 | 24.97 | 6.00 | 22.80 | 28 | |||||
| L | 10 | +0.012 +0.006 |
50 ~ 100 | 3.00 – 7.80 | 9.97 | 2.50 | 7.80 | 19 | 13 | ||
| 13 | +0.015 +0.007 |
50 ~ 100 | 6.00 – 10.80 | 12.97 | 3.00 | 10.80 | 16 | ||||
| 16 | 60 ~ 100 | 10.00 – 13.80 | 15.97 | 4.00 | 13.80 | 25 | 19 | ||||
| 20 | +0.017 +0.008 |
60 ~ 100 | 13.00 – 17.80 | 19.97 | 5.00 | 17.80 | 23 | ||||
| 25 | 60 ~ 100 | 18.00 – 22.80 | 24.97 | 6.00 | 22.80 | 28 | |||||
| X | 10 | +0.012 +0.006 |
60 ~ 100 | 3.00 – 7.80 | 9.97 | 5.00 | 7.80 | 30 | 13 | ||
| 13 | +0.015 +0.007 |
60 ~ 100 | 6.00 – 10.80 | 12.97 | 5.00 | 10.80 | 16 | ||||
| 16 | 70 ~ 100 | 10.00 – 13.80 | - | 40 | 19 | ||||||
| 20 | +0.017 +0.008 |
70 ~ 100 | 13.00 – 17.80 | - | 23 | ||||||
| 25 | 70 ~ 100 | 18.00 – 22.80 | - | 28 | |||||||
