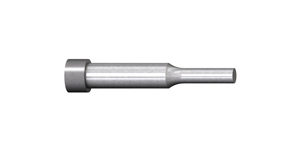

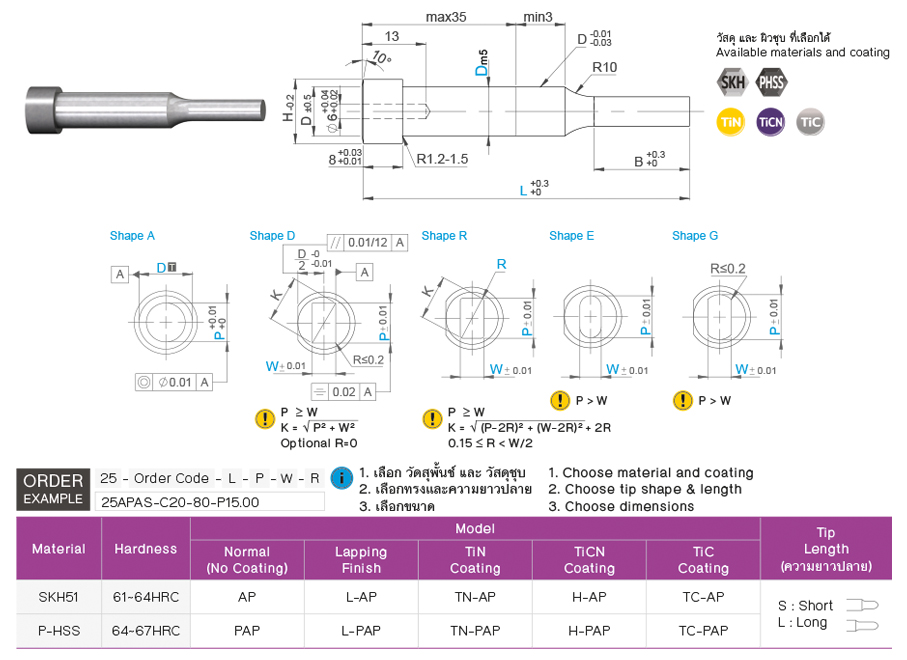

Heavy Load Punch with Dowel
Heavy Load Punch with Dowel for metal stamping die.
1. Choose punch material and coating
2. Choose tip shape & length
3. Choose dimensions
more
View Online
Download
Swipe
| Order Code | L 10mm increment |
0.01mm increment | B | H | ||||||||||
| Shape A | Shape D R E G | |||||||||||||
| Code | Shape | Tip Length | Dowel Type |
D m5 | P | P,K Max | P,W Min | |||||||
| Code | A D R E G |
S | -C | 10 | +0.012 +0.006 |
50 ~ 150 | 3.00 – 9.99 | 9.97 | 2.50 | 13 (L50 B=8) |
15 | |||
| 13 | +0.015 +0.007 |
50 ~ 150 | 6.00 – 12.99 | 12.97 | 3.00 | 18 | ||||||||
| 16 | 50 ~ 150 | 10.00 – 15.99 | 15.97 | 4.00 | 19 (L50 B=8) |
21 | ||||||||
| 20 | +0.017 +0.008 |
50 ~ 150 | 13.00 – 19.99 | 19.97 | 5.00 | 25 | ||||||||
| 25 | 50 ~ 150 | 18.00 – 24.99 | 24.97 | 6.00 | 30 | |||||||||
| L | 10 | +0.012 +0.006 |
60 ~ 150 | 3.00 – 9.99 | 9.97 | 2.50 | 19 | 15 | ||||||
| 13 | +0.015 +0.007 |
60 ~ 150 | 6.00 – 12.99 | 12.97 | 3.00 | 18 | ||||||||
| 16 | 70 ~ 150 | 10.00 – 15.99 | 15.97 | 4.00 | 25 | 21 | ||||||||
| 20 | +0.017 +0.008 |
70 ~ 150 | 13.00 – 19.99 | 19.97 | 5.00 | 25 | ||||||||
| 25 | 70 ~ 150 | 18.00 – 24.99 | 24.97 | 6.00 | 30 | |||||||||
