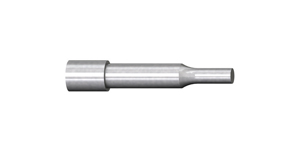

Flange Stopper Punch
Flange Stopper Punch for metal stamping die.
1. Choose punch material and coating
2. Choose dimensions
more
View Online
Download
Swipe

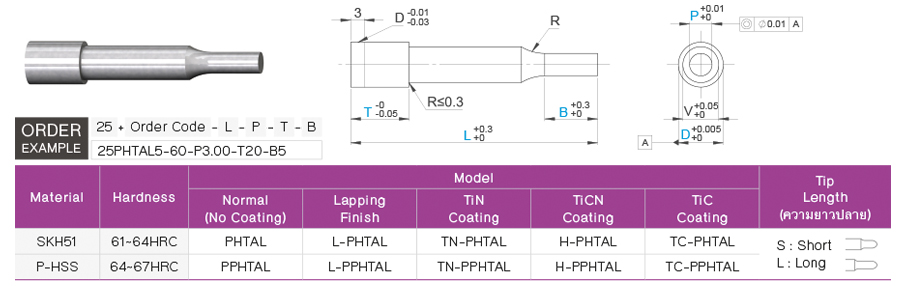

| Order Code | L 10mm increment |
P 0.01 mm increment |
T | B 1 mm increment |
V | R | |
| Model | D | ||||||
| Model Code |
10 | 40 ~ 70 | 3.00 – 8.00 | 13 16 20 25 (L>40) |
2 – 13 (2-10 when, L=40) |
8 | 10 |
| 13 | 40 ~ 70 | 3.00 – 10.00 | 11 | ||||
| 16 | 40 ~ 70 | 6.00 – 13.00 | 14 | ||||
| 20 | 40 ~ 70 | 10.00 – 16.00 | 18 | ||||
| 25 | 40 ~ 70 | 13.00 – 23.00 | 23 | ||||
