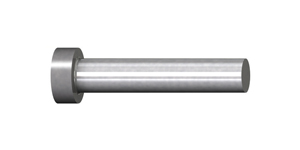

Straight Punch
Straight Punch for metal stamping die.

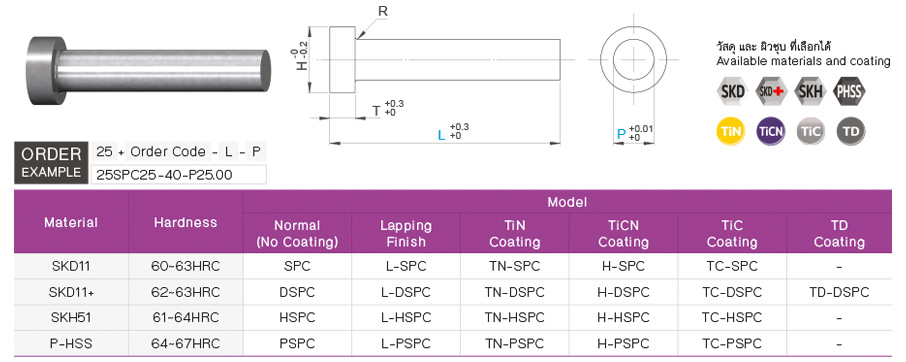

1. Choose punch material and coating
2. Choose dimensions
more
View Online
Download
Swipe
| Order Code | L | P 0.01 mm increment |
T | H | |||||||||
| Model | No. | ||||||||||||
| Model Code |
10 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 8.00 – 10.00 | 5 | 13 | ||
| 13 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 10.00 – 13.00 | 16 | ||
| 16 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 13.00 – 16.00 | 19 | ||
| 20 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 16.00 – 20.00 | 23 | ||
| 25 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 20.00 – 25.00 | 28 | ||
