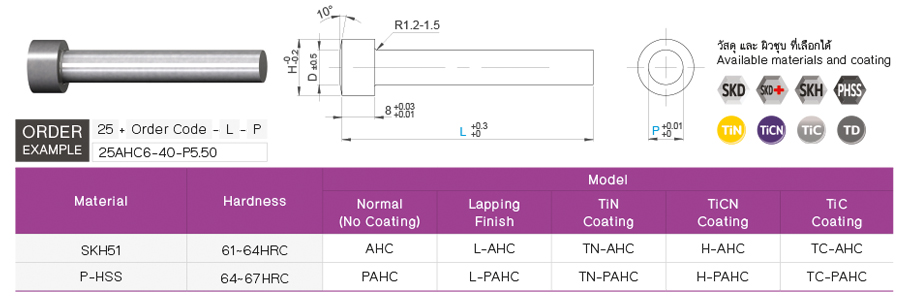

Straight Punch for Heavy Load
Straight Punch for Heavy Load for metal stamping die.
1. Choose punch material and coating
2. Choose dimensions
more
View Online
Download
Swipe
| Order Code | L | P 0.01 mm increment |
H | |||||||||
| Model | No. | |||||||||||
| Model Code |
10 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 8.00 – 10.00 | 15 | ||
| 13 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 10.00 – 13.00 | 18 | |
| 16 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 13.00 – 16.00 | 21 | |
| 20 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 16.00 – 20.00 | 25 | |
| 25 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 20.00 – 25.00 | 30 | |
