NPTF Pipe Ring Gage

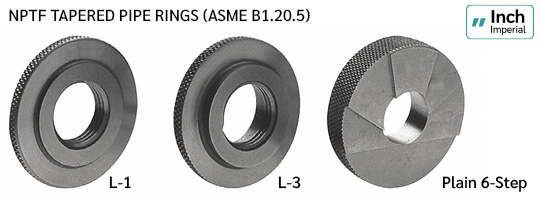

NPTF TAPERED PIPE RINGS (ASME B1.20.5)
Pipe Thread Ring Gage for work inspection.
Certificate of Accuracy is included.
Vermont Gage products are Made in USA.
- NPTF (ASME B1.20.5)
- Class X tolerances
- NIST traceable
- Tool Steel; 60/62 Rc (Cold Stabilized)
- Certificate of Accuracy included
more
- Manufacturer Code NPTF/Inch/Ring
Swipe
| Size NPTF |
L-1 | L-3 | Plain 6-Step |
| 1/16-27 | 04451101010 | 04451101020 | 04451101070 |
| 1/8-27 | 04451102510 | 04451102520 | 04451102570 |
| 1/4-18 | 04451104010 | 04451104020 | 04451104070 |
| 3/8-18 | 04451105510 | 04451105520 | 04451105570 |
| 1/2-14 | 04451107010 | 04451107020 | 04451107070 |
| 3/4-14 | 04451108510 | 04451108520 | 04451108570 |
| 1-1 1/2 | 04451110010 | 04451110020 | 04451110070 |
| 1 1/4-11 1/2 | 04451111510 | 04451111520 | 04451111570 |
| 1 1/2-11 1/2 | 04451113010 | 04451113020 | 04451113070 |
| 2-11 1/2 | 04451114510 | 04451114520 | 04451114570 |
| 2 1/2-8 | 04451116010 | 04451116020 | 04451116070 |
| 3/8 | 04451117510 | 04451117520 | 04451117570 |
