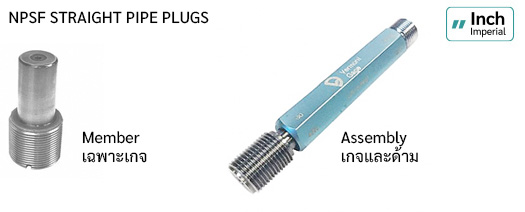

NPSF Straight Pipe Plug Gage
Pipe Thread Plug Gage for work inspection.
Certificate of Accuracy is included.
Vermont Gage products are Made in USA.
- NPSF
- Class X tolerances
- NIST traceable
- Tool Steel; 60/62 Rc (Cold Stabilized)
- Certificate of Accuracy included
more
- Manufacturer Code NPSF/Inch/Plug
Swipe
| Size NPSF |
Pitch Diameter | Order Code | |||
| Go Member 2B |
NoGo Member 2B |
Go Member 2B |
NoGo Member 2B |
Go/NoGo Assembly 2B |
|
| 1/8-27 | 0.3692 | 0.3727 | 04431102510 | 04431102520 | 04431102530 |
| 1/4-18 | 0.4852 | 0.4904 | 04431104010 | 04431104020 | 04431104030 |
| 3/8-18 | 0.6205 | 0.6257 | 04431105510 | 04431105520 | 04431105530 |
| 1/2-14 | 0.77 | 0.7767 | 04431107010 | 04431107020 | 04431107030 |
| 3/4-14 | 0.9805 | 0.9872 | 04431108510 | 04431108520 | 04431108530 |
| 1-11 1/2 | 1.2284 | 1.2365 | 04431110010 | 04431110020 | 04431110030 |
