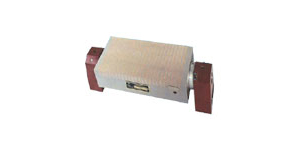

Rotary Permanent Magnetic Chuck

Rotary Permanent Magnetic Chuck standard pitch for holding workpiece.

Models:
03HMT-U (Standard Pitch)

more
  • Model 03HMT-U/03HMT-UW
Brand
Taichong
Taichong
  • Type

    Rotary

  • Pitch

    Standard Pitch

    Micro-Pitch

Swipe

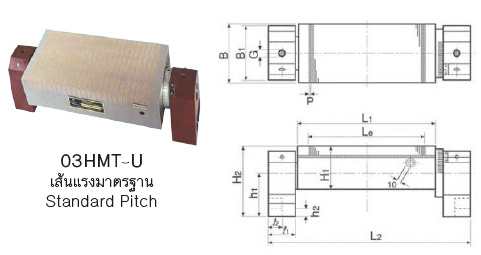

Rotary Permanent Magnetic Chuck drawing
Order Code Chuck Dimension Pole Pitch Length Rotary Base Height Weight (kg)
B L1 Le H1 P L2 B1 l1 l2 G h1 h2 H2
03HMT-1018U 100 175 125 78 11.2
(1.6+2+1.6+6)		 293 100 50 25 14 103 50 145 17
