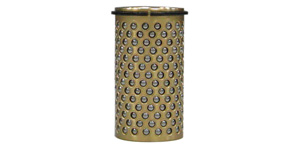

Brass Ball Retainers with Clip

Brass ball cage with clip for use in die, mold, and machine components.
Model: 25SB-WC

more
  • Model 25SB-WC
  • Manufacturer Code 7631
Brand
OIL FREE
OIL FREE
  • Body Materials

    Brass

Swipe

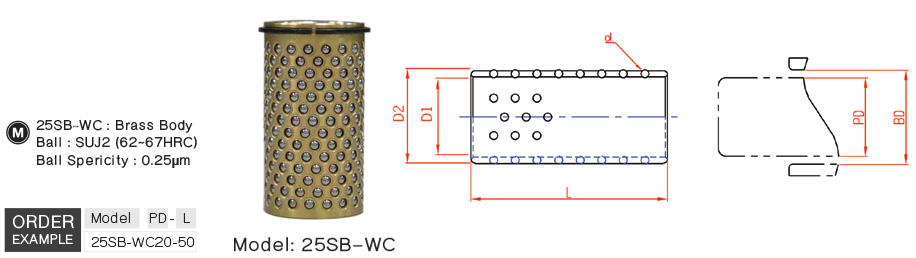

Brass Ball Retainers with Clip drawing
Model PD
(Post Diameter)
L D1 D2 d Number of Balls
25SB-WC
(Brass with Clip)
12 20 12.2 15.7 2 72
28 108
36 132
42 156
51 192
15 24 15.4 20.4 3 48
35 84
52 132
16 24 16.4 21.4 48
35 84
42 108
52 132
65 180
72 204
19 35 19.4 24.4 112
43 144
50 176
57 208
65 240
82 304
20 35 20.4 25.4 112
50 176
57 208
72 272
82 304
24 43 24.4 29.4 162
52 198
60 252
67 270
77 324
84 360
25 43 25.4 30.4 162
52 198
60 252
67 270
77 324
84 360
100 432
