Base Mount Ball Roller
Base Mount Ball Roller model 25SSBRA for transfer units.
more
- Model 25SSBRA
- Manufacturer Code 25SSBRA16/25SSBRA25/25SSBRA30/25SSBRA38
Download
Swipe

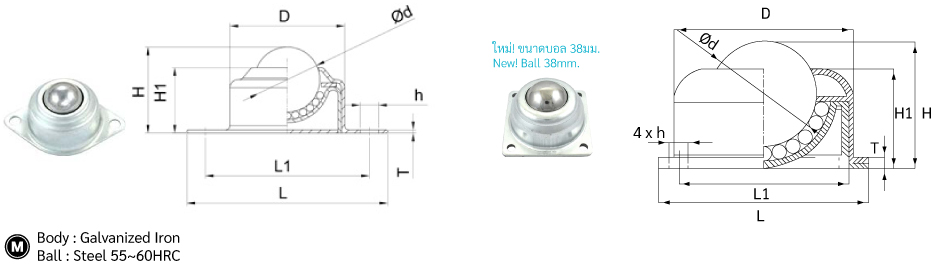

| Order Code | Ball d | D | L | L1 | H | H1 | T | h (for screw) |
Load Capacity |
Max Load Capacity | Net Weight |
|
| 25SSBRA16 | 15.875mm | 5/8” | 28 | 49 | 40 | 21 | 16 | 0.8 | M4 | 10kg | 15kg | 38g |
| 25SSBRA25 | 25.4mm | 1” | 42 | 70 | 56 | 30 | 23 | 1 | M5 | 25kg | 30kg | 130g |
| 25SSBRA30 | 30mm | 1-3/16” | 52 | 86 | 70 | 40 | 31 | 1.2 | M6 | 40kg | 50kg | 240g |
| 25SSBRA38 | 38mm | 1-1/2” | 65 | 76.5 | 62 | 46 | 36 | 4 | M7 | 60kg | 80kg | 460g |
