Oil Free Slide Plate (5mm)
Oil Free Slide Plate for universal use in many dry application such as die/mold, machinery, automation, construction, automobile. Oil Free is self lubrication and work without grease.
Material : #500SP
(High Strength Brass / Copper Alloy + Solid Lubricant)
more
- Model 25UTWW
- Manufacturer Code UTWW/UWP
Download
Swipe

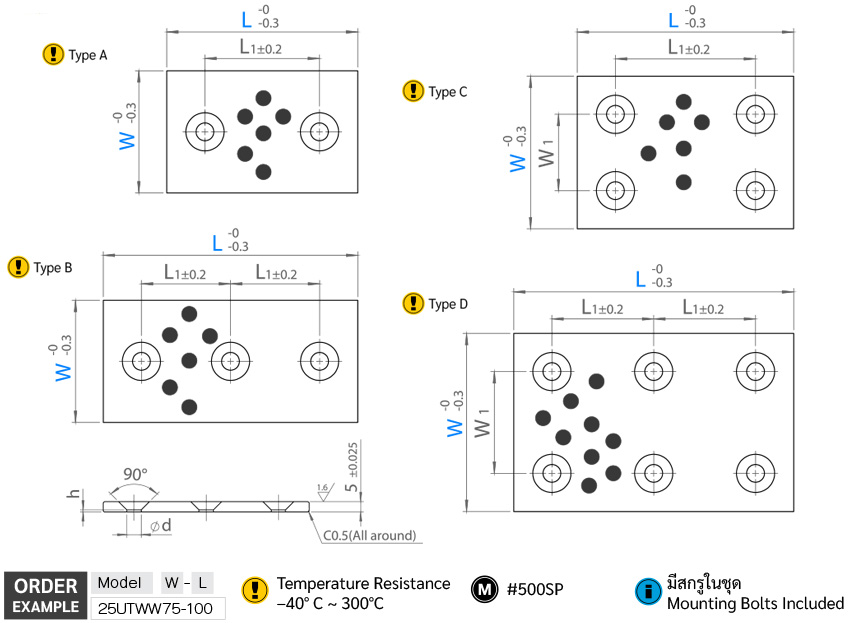

| W | L | Type | L1 | W1 | d | h | Mounting Bolts |
| 18 | 50 | A | 20 | - | 6.5 | 1.5 | M6 |
| 75 | A | 45 | |||||
| 100 | A | 70 | |||||
| 150 | B | 60 | |||||
| 28 | 50 | A | 20 | - | 10 | 0.8 | M8 |
| 75 | A | 45 | |||||
| 100 | A | 70 | |||||
| 150 | B | 60 | |||||
| 38 | 50 | A | 20 | - | 10 | 0.8 | M8 |
| 75 | A | 45 | |||||
| 100 | A | 70 | |||||
| 150 | B | 60 | |||||
| 48 | 75 | A | 45 | - | 10 | 0.8 | M8 |
| 100 | A | 70 | |||||
| 125 | A | 95 | |||||
| 150 | B | 60 | |||||
| 75 | 75 | C | 45 | 45 | 10 | 0.8 | M8 |
| 100 | C | 70 | |||||
| 125 | C | 95 | |||||
| 150 | D | 60 | |||||
| 100 | 100 | C | 70 | 70 | 10 | 0.8 | M8 |
| 125 | C | 95 | |||||
| 150 | D | 60 |
