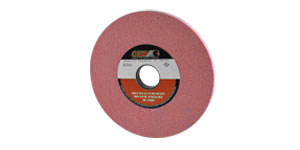

WAR Grinding Wheel
WAR wheel is an Improvement over WA for tempered steels and HSS. Provide exceptional cool, fast cutting, and require minimum dressing.
more
- Model 32WAR
- Manufacturer Code WAR/AZ
Swipe
| Order Code | Grain # | Dimensions | Type | Cutting Speed |
R.P.M. | |
| mm | inch | |||||
| 32WAR46K7V 180x13x31.75 | #46 | 180 x 13 x 31.75 | 7 x1/2 x 1-1/4 | 1 | 35 M/S | 3750 |
| 32WAR60K7V 305x32x127 | #60 | 305 x 32 x 127 | 12 x 1-1/4 x 5 | 1 | 35 M/S | 2250 |
| 32WAR80K7V 180x13x31.75 | #80 | 180 x 13 x 31.75 | 7 x1/2 x 1-1/4 | 1 | 35 M/S | 3750 |
| 32WAR80K7V 180x25x31.75 | 180 x 25 x 31.75 | 7 x 1 x 1-1/4 | 1 | 35 M/S | 3750 | |
