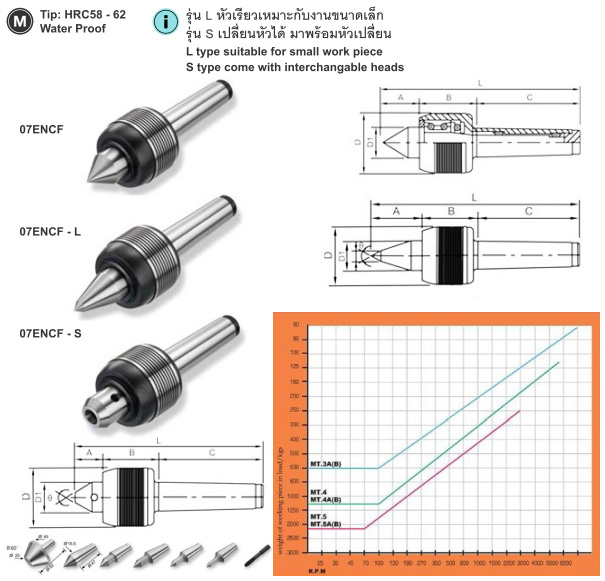

Heavy Load Live Center
Heavy Load Live Center for CNC lathe with water proof mechanism.
L Type : The extra long point for small work.
S Type : The points are interchangeable, and are included in the set.
more
- Model 07ENCF
- Manufacturer Code ENCF/NCF
View Online
Download
Swipe
| Order Code | Shank Morse Taper |
A | B | C | D | D1 | d | L | Ɵ | Max RPM |
Max Load Kg |
Accuracy |
| 07ENCF-4 | MT4 | 45 | 60 | 108 | 68 | 32 | - | 213 | 60 | 5500 | 1200 | 0.003 |
| 07ENCF-L3 | MT3 | 52 | 50 | 86 | 53 | 30 | 10 | 188 | 6000 | 630 | ||
| 07ENCF-L4 | MT4 | 55 | 60 | 108 | 68 | 32 | 12 | 223 | 5500 | 1200 |
