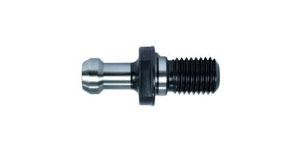

BT Pull Stud

Pull Studs for BT taper type tool holders.
Available for BT30,BT40,BT50.

more
  • Model 07BT
  • Manufacturer Code BT
Brand
Ann Way
Ann Way
Swipe
BT Pull Stud drawing
Order Code BT
Type		 a° L L1 L2 D d1 d2 d3 M
07BT30-30 BT30 30 43 23 18 16.5 11 7 12.5 M12
07BT30-45 45 43 23 18 16.5 11 7 12.5 M12
07BT30-60 60 43 23 18 16.5 11 7 12.5 M12
07BT30-90 90 43 23 18 16.5 11 7 12.5 M12
07BT40-30 BT40 30 60 35 28 23 15 10 17 M16
07BT40-45 45 60 35 28 23 15 10 17 M16
07BT40-60 60 60 35 28 23 15 10 17 M16
07BT40-90 90 60 35 28 23 15 10 17 M16
07BT50-30 BT50 30 85 45 35 38 23 17 25 M24
07BT50-45 45 85 45 35 38 23 17 25 M24
07BT50-60 60 85 45 35 38 23 17 25 M24
07BT50-90 90 85 45 35 38 23 17 25 M24
