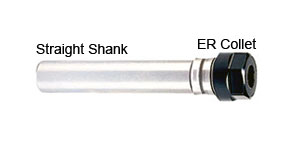

Straight ER Collet Chuck
ER Collet holder with straight shank for extending machining range. Shank length can be choosen from 100 and 150mm
more
- Model 07C
View Online
Download
Swipe
| Order Code | Shank D1 |
ER Collet Size |
Shank Length L1 | L | D | J |
| 07C20-ER16-100 | Ø20 | ER16 | 100 | 30 | 28 | M12 |
| 07C20-ER16-150 | Ø20 | ER16 | 150 | 30 | 28 | M12 |
| 07C20-ER20-100 | Ø20 | ER20 | 100 | 36 | 34 | M12 |
| 07C20-ER20-150 | Ø20 | ER20 | 150 | 36 | 34 | M12 |
