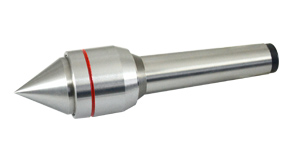

Medium Load Live Center
Live Center for medium load work and medium speed.
Load: 200-100KG
Max RPM: 5000RPM
L Type : The extra long point for small work.
S Type : The points are interchangeable, and are included in the set.
more
- Model 07ENK
- Manufacturer Code ENK/NK
View Online
Download
Swipe

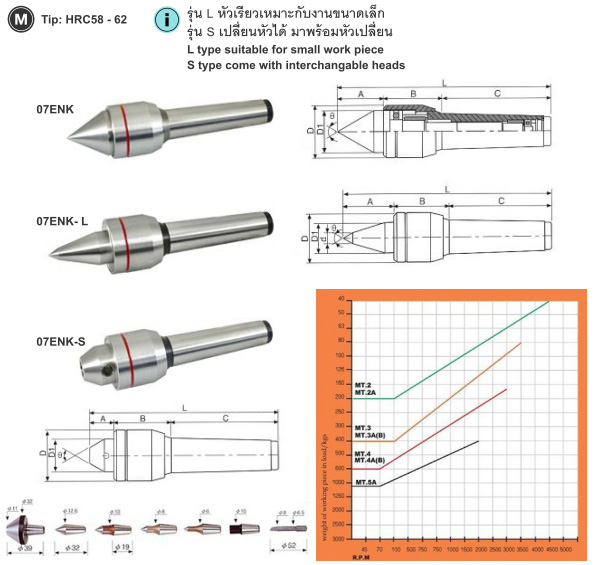

| Order Code | Shank Morse Taper |
A | B | C | D | D1 | d | L | Ɵ | Max R.P.M. |
Max Load Kg |
Accuracy |
| 07ENK-2 | MT2 | 28 | 35 | 69 | 32 | 23 | - | 132 | 60 | 5000 | 200 | ±0.003 |
| 07ENK-3 | MT3 | 36 | 44 | 86 | 41 | 35 | - | 166 | 3500 | 400 | ||
| 07ENK-5 | MT5 | 54 | 72 | 136 | 65 | 52 | - | 262 | 2000 | 1000 | ||
| 07ENK-L3 | MT3 | 46 | 44 | 86 | 41 | 25 | 10 | 176 | 3500 | 400 | ||
| 07ENK-L4 | MT4 | 55 | 51 | 108 | 47 | 32 | 12 | 214 | 3000 | 600 | ||
| 07ENK-S2 | MT2 | 22 | 36 | 69 | 32 | 25 | - | 127 | 5000 | 200 | ±0.005 | |
| 07ENK-S3 | MT3 | 23 | 44 | 86 | 41 | 30 | - | 153 | 3500 | 400 | ||
| 07ENK-S4 | MT4 | 23 | 44 | 86 | 41 | 32 | - | 182 | 3000 | 600 |
