Paper Filter
The Paper Filter filtration system can be use for fine filter of used coolant, the accuracy depend on the paper filter used. To save the paper usage, it is recommended to use together with Magnetic Separator to rough filter first.
Standard accessory : 1 roll of filter.
more
- Model 03PF
- Manufacturer Code PF
View Online
Download
Swipe
| Order Code |
Disposal Capacity L/min |
Water Tank Capacity |

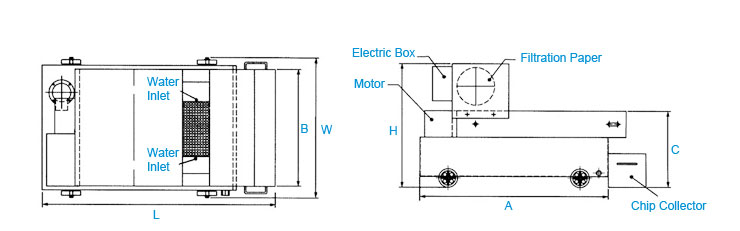

L | A | B | C | W | H | Pump (HP) | Pump (Outlet) |
Paper Motor |
Paper |
| 03PF-20 | 20 | 100 | 1050 | 850 | 600 | 400 | 720 | 610 | 1/8 | 1/2PT | 25W | 500MMx90M |
| 03PF-40 | 40 | 120 | 1200 | 1000 | 600 | 400 | 720 | 660 | 1/8 | 1/2PT | 25W | |
| 03PF-60 | 60 | 140 | 1350 | 1150 | 600 | 400 | 720 | 660 | 1/8 | 1/2PT | 25W | |
| 03PF-80 | 80 | 160 | 1500 | 1300 | 600 | 400 | 720 | 660 | 1/4 | 3/4PT | 25W |
Swipe
| Order Code | Description | Paper Size |
Filter Size | Unit Size | ||||||||
| 032C5-1035-20 | Paper | 500MMx90M | 0.030mm | 1 Roll | ||||||||
| 032C5-1050-20 | 0.015mm | |||||||||||
