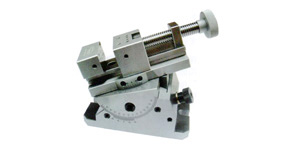

Precision Universal Vice
This high precision tilting vice can be use for grinding, milling, boring, drilling. The vertical position can tilt 45 degree, and the horizontal swivel can turn 360 degree.
Squareness / Parallelism : +- 0.01m/m
Material : SK2
Harness : HRC54-58
more
View Online
Download
Swipe

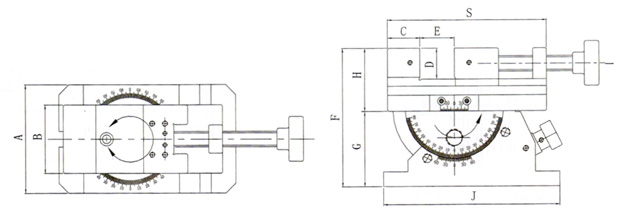

| Order Code | A | B | C | D | E (Jaw Open) |
F | G | H | S | J | Vertical Angle | Horizontal Angle | Weight (kg) |
| 02HD-80 | 110 | 70 | 33 | 32 | 0 – 80 | 141 | 77 | 64 | 162 | 180 | 45° | 360° | 12.90 |
