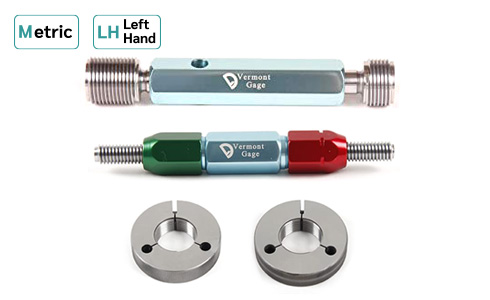

Metric LH Thread Gage

Metric Left Hand type Thread Plug Gage and Thread Ring Gage for work inspection.
Certificate of Accuracy is included. ISO 17025 Accredited and Non-Accredited Calibration Certificates may be purchased.

  • Thread Types: M Series Metric
  • Tolerance: Class X
  • Class of Fit:
    • Plug : 6H
    • Ring : 6g
  • Material:
    • Plug : Chrome 70/72 Rc
    • Ring : Tool Steel, 60/62 Rc
more
  • Manufacturer Code Metric/LH
Swipe

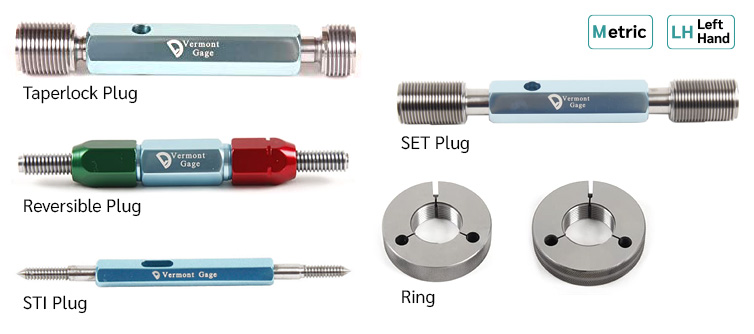

Metric LH Thread Gage drawing
Size Type Fit
Class
Go
Member
NoGo
Member
Go/NoGo
Set
Gage Length Pitch Diameter Handle
Go NoGo Go NoGo
M1.6 X 0.35 LH Taperlock Plug 6H 04302501010 04302501020 04302501030 6.4mm 4.8mm 1.373mm 1.458mm 000
Ring 6g 04362501010 04362501020 04362501030 2.4mm 2.4mm 1.354mm 1.291mm 1T
Set Plug 6g 04372501010 04372501020 04372501030 5.6mm 5.6mm 1.354mm 1.291mm 000
M1.8 X 0.35 LH Taperlock Plug 6H 04302502510 04302502520 04302502530 6.4mm 4.8mm 1.573mm 1.658mm 000
Ring 6g 04362502510 04362502520 04362502530 2.4mm 2.4mm 1.554mm 1.491mm 1T
Set Plug 6g 04372502510 04372502520 04372502530 5.6mm 5.6mm 1.554mm 1.491mm 000
M2.0 X 0.4 LH Taperlock Plug 6H 04302504010 04302504020 04302504030 6.4mm 4.8mm 1.740mm 1.830mm 000
Ring 6g 04362504010 04362504020 04362504030 2.4mm 2.4mm 1.721mm 1.654mm 1T
Set Plug 6g 04372504010 04372504020 04372504030 5.6mm 5.6mm 1.721mm 1.654mm 000
M2.2 X 0.45 LH Taperlock Plug 6H 04302505510 04302505520 04302505530 6.4mm 4.8mm 1.908mm 2.003mm 000
Ring 6g 04362505510 04362505520 04362505530 2.4mm 2.4mm 1.888mm 1.817mm 1T
Set Plug 6g 04372505510 04372505520 04372505530 5.6mm 5.6mm 1.888mm 1.817mm 000
M2.50 X 0.35 LH Taperlock Plug 6H 04302506010 04302506020 04302506030 6.4mm 4.8mm 2.273mm 2.358mm 000
Ring 6g 04362506010 04362506020 04362506030 4mm 4mm 2.254mm 2.191mm 1T
Set Plug 6g 04372506010 04372506020 04372506030 9.5mm 9.5mm 2.254mm 2.191mm 000
M2.5 X 0.45 LH Taperlock Plug 6H 04302507010 04302507020 04302507030 6.4mm 4.8mm 2.208mm 2.303mm 000
Ring 6g 04362507010 04362507020 04362507030 4mm 4mm 2.188mm 2.117mm 1T
Set Plug 6g 04372507010 04372507020 04372507030 9.5mm 9.5mm 2.188mm 2.117mm 000
M3.0 X 0.35 LH Taperlock Plug 6H 04302508010 04302508020 04302508030 5.6mm 4.0mm 2.773mm 2.863mm 00
Ring 6g 04362508010 04362508020 04362508030 4mm 4mm 2.754mm 2.687mm 1T
Set Plug 6g 04372508010 04372508020 04372508030 9.5mm 9.5mm 2.754mm 2.687mm 00
M3.0 X 0.5 LH Taperlock Plug 6H 04302508510 04302508520 04302508530 5.6mm 4.0mm 2.675mm 2.775mm 00
Ring 6g 04362508510 04362508520 04362508530 4mm 4mm 2.655mm 2.580mm 1T
Set Plug 6g 04372508510 04372508520 04372508530 9.5mm 9.5mm 2.655mm 2.580mm 00
M3.5 X 0.35 LH Taperlock Plug 6H 04302509010 04302509020 04302509030 5.6mm 4.0mm 3.273mm 3.363mm 00
Ring 6g 04362509010 04362509020 04362509030 4mm 4mm 3.254mm 3.187mm 1T
Set Plug 6g 04372509010 04372509020 04372509030 9.5mm 9.5mm 3.254mm 3.187mm 00
M3.5 X 0.6 LH Taperlock Plug 6H 04302510010 04302510020 04302510030 7.9mm 5.6mm 3.110mm 3.222mm 00
Ring 6g 04362510010 04362510020 04362510030 4mm 4mm 3.089mm 3.004mm 1T
Set Plug 6g 04372510010 04372510020 04372510030 9.5mm 9.5mm 3.089mm 3.004mm 00
M4.0 X 0.5 LH Taperlock Plug 6H 04302511010 04302511020 04302511030 7.1mm 5.6mm 3.675mm 3.775mm 0
Ring 6g 04362511010 04362511020 04362511030 4mm 4mm 3.655mm 3.580mm 1T
Set Plug 6g 04372511010 04372511020 04372511030 10.3mm 10.3mm 3.655mm 3.580mm 0
M4.0 X 0.7 LH Taperlock Plug 6H 04302511510 04302511520 04302511530 10.3mm 7.1mm 3.545mm 3.663mm 0
Ring 6g 04362511510 04362511520 04362511530 4mm 4mm 3.523mm 3.433mm 1T
Set Plug 6g 04372511510 04372511520 04372511530 10.3mm 10.3mm 3.523mm 3.433mm 0
M4.5 X 0.5 LH Taperlock Plug 6H 04302512010 04302512020 04302512030 7.1mm 5.6mm 4.175mm 4.275mm 0
Ring 6g 04362512010 04362512020 04362512030 4.8mm 4.8mm 4.155mm 4.080mm 1T
Set Plug 6g 04372512010 04372512020 04372512030 10.3mm 10.3mm 4.155mm 4.080mm 0
M4.5 X 0.75 LH Taperlock Plug 6H 04302513010 04302513020 04302513030 10.3mm 7.1mm 4.013mm 4.131mm 0
Ring 6g 04362513010 04362513020 04362513030 4.8mm 4.8mm 3.991mm 3.901mm 1T
Set Plug 6g 04372513010 04372513020 04372513030 10.3mm 10.3mm 3.991mm 3.901mm 0
M5.0 X 0.5 LH Taperlock Plug 6H 04302513510 04302513520 04302513530 7.1mm 5.6mm 4.675mm 4.775mm 0
Ring 6g 04362513510 04362513520 04362513530 4.8mm 4.8mm 4.655mm 4.580mm 1T
Set Plug 6g 04372513510 04372513520 04372513530 10.3mm 10.3mm 4.655mm 4.580mm 0
M5.0 X 0.8 LH Taperlock Plug 6H 04302514510 04302514520 04302514530 10.3mm 7.1mm 4.480mm 4.605mm 0
Ring 6g 04362514510 04362514520 04362514530 4.8mm 4.8mm 4.456mm 4.361mm 1T
Set Plug 6g 04372514510 04372514520 04372514530 10.3mm 10.3mm 4.456mm 4.361mm 0
M5.5 X 0.5 LH Taperlock Plug 6H 04302515010 04302515020 04302515030 7.1mm 5.6mm 5.175mm 5.275mm 0
Ring 6g 04362515010 04362515020 04362515030 4.8mm 4.8mm 5.155mm 5.080mm 1T
Set Plug 6g 04372515010 04372515020 04372515030 10.3mm 10.3mm 5.155mm 5.080mm 0
M5.5 X 0.75 LH Taperlock Plug 6H 04302516010 04302516020 04302516030 10.3mm 7.1mm 5.013mm 5.131mm 0
Ring 6g 04362516010 04362516020 04362516030 4.8mm 4.8mm 4.991mm 4.901mm 1T
Set Plug 6g 04372516010 04372516020 04372516030 10.3mm 10.3mm 4.991mm 4.901mm 0
M6.0 X 0.75 LH Taperlock Plug 6H 04302517010 04302517020 04302517030 12.7mm 7.9mm 5.513mm 5.645mm 1
Ring 6g 04362517010 04362517020 04362517030 8.7mm 8.7mm 5.491mm 5.391mm 2T
Set Plug 6g 04372517010 04372517020 04372517030 19.0mm 19.0mm 5.491mm 5.391mm 1
M6.0 X 1 LH Taperlock Plug 6H 04302517510 04302517520 04302517530 12.7mm 7.9mm 5.350mm 5.500mm 1
Ring 6g 04362517510 04362517520 04362517530 8.7mm 8.7mm 5.324mm 5.212mm 2T
Set Plug 6g 04372517510 04372517520 04372517530 19.0mm 19.0mm 5.324mm 5.212mm 1
M7.0 X 0.75 LH Taperlock Plug 6H 04302518010 04302518020 04302518030 12.7mm 7.9mm 6.513mm 6.645mm 1
Ring 6g 04362518010 04362518020 04362518030 8.7mm 8.7mm 6.491mm 6.391mm 2T
Set Plug 6g 04372518010 04372518020 04372518030 19.0mm 19.0mm 6.491mm 6.391mm 1
M7.0 X 1 LH Taperlock Plug 6H 04302519010 04302519020 04302519030 12.7mm 7.9mm 6.350mm 6.500mm 1
Ring 6g 04362519010 04362519020 04362519030 8.7mm 8.7mm 6.324mm 6.212mm 2T
Set Plug 6g 04372519010 04372519020 04372519030 19.0mm 19.0mm 6.324mm 6.212mm 1
M8.0 X 0.75 LH Taperlock Plug 6H 04302519510 04302519520 04302519530 12.7mm 7.9mm 7.513mm 7.645mm 1
Ring 6g 04362519510 04362519520 04362519530 8.7mm 8.7mm 7.491mm 7.391mm 2T
Set Plug 6g 04372519510 04372519520 04372519530 19.0mm 19.0mm 7.491mm 7.391mm 1
M8.0 X 1 LH Taperlock Plug 6H 04302520010 04302520020 04302520030 12.7mm 7.9mm 7.350mm 7.500mm 1
Ring 6g 04362520010 04362520020 04362520030 8.7mm 8.7mm 7.324mm 7.212mm 2T
Set Plug 6g 04372520010 04372520020 04372520030 19.0mm 19.0mm 7.324mm 7.212mm 1
M8.0 X 1.25 LH Taperlock Plug 6H 04302520510 04302520520 04302520530 12.7mm 7.9mm 7.188mm 7.348mm 1
Ring 6g 04362520510 04362520520 04362520530 8.7mm 8.7mm 7.160mm 7.042mm 2T
Set Plug 6g 04372520510 04372520520 04372520530 19.0mm 19.0mm 7.160mm 7.042mm 1
M9.0 X 0.75 LH Taperlock Plug 6H 04302520710 04302520720 04302520730 12.7mm 7.9mm 8.513mm 8.645mm 1
Ring 6g 04362520710 04362520720 04362520730 8.7mm 8.7mm 8.491mm 8.391mm 2T
Set Plug 6g 04372520710 04372520720 04372520730 19.0mm 19.0mm 8.491mm 8.391mm 1
M9.0 X 1 LH Taperlock Plug 6H 04302521010 04302521020 04302521030 12.7mm 7.9mm 8.350mm 8.500mm 1
Ring 6g 04362521010 04362521020 04362521030 8.7mm 8.7mm 8.324mm 8.212mm 2T
Set Plug 6g 04372521010 04372521020 04372521030 19.0mm 19.0mm 8.324mm 8.212mm 1
M9.0 X 1.25 LH Taperlock Plug 6H 04302522010 04302522020 04302522030 12.7mm 7.9mm 8.188mm 8.348mm 1
Ring 6g 04362522010 04362522020 04362522030 8.7mm 8.7mm 8.160mm 8.042mm 2T
Set Plug 6g 04372522010 04372522020 04372522030 19.0mm 19.0mm 8.160mm 8.042mm 1
M10.0 X 0.75 LH Taperlock Plug 6H 04302523510 04302523520 04302523530 19.0mm 9.5mm 9.513mm 9.645mm 2
Ring 6g 04362523510 04362523520 04362523530 11.1mm 11.1mm 9.491mm 9.391mm 3T
Set Plug 6g 04372523510 04372523520 04372523530 25.4mm 25.4mm 9.491mm 9.391mm 2
M10.0 X 1 LH Taperlock Plug 6H 04302524010 04302524020 04302524030 19.0mm 9.5mm 9.350mm 9.500mm 2
Ring 6g 04362524010 04362524020 04362524030 11.1mm 11.1mm 9.324mm 9.212mm 3T
Set Plug 6g 04372524010 04372524020 04372524030 25.4mm 25.4mm 9.324mm 9.212mm 2
M10.0 X 1.25 LH Taperlock Plug 6H 04302524510 04302524520 04302524530 19.0mm 9.5mm 9.188mm 9.348mm 2
Ring 6g 04362524510 04362524520 04362524530 11.1mm 11.1mm 9.160mm 9.042mm 3T
Set Plug 6g 04372524510 04372524520 04372524530 25.4mm 25.4mm 9.160mm 9.042mm 2
M10.0 X 1.5 LH Taperlock Plug 6H 04302525510 04302525520 04302525530 19.0mm 9.5mm 9.026mm 9.206mm 2
Ring 6g 04362525510 04362525520 04362525530 11.1mm 11.1mm 8.994mm 8.862mm 3T
Set Plug 6g 04372525510 04372525520 04372525530 25.4mm 25.4mm 8.994mm 8.862mm 2
M11.0 X 0.75 LH Taperlock Plug 6H 04302526010 04302526020 04302526030 19.0mm 9.5mm 10.513mm 10.645mm 2
Ring 6g 04362526010 04362526020 04362526030 11.1mm 11.1mm 10.491mm 10.391mm 3T
Set Plug 6g 04372526010 04372526020 04372526030 25.4mm 25.4mm 10.491mm 10.391mm 2
M11.0 X 1 LH Taperlock Plug 6H 04302526510 04302526520 04302526530 19.0mm 9.5mm 10.350mm 10.500mm 2
Ring 6g 04362526510 04362526520 04362526530 11.1mm 11.1mm 10.324mm 10.212mm 3T
Set Plug 6g 04372526510 04372526520 04372526530 25.4mm 25.4mm 10.324mm 10.212mm 2
M11.0 X 1.5 LH Taperlock Plug 6H 04302527010 04302527020 04302527030 19.0mm 9.5mm 10.026mm 10.206mm 2
Ring 6g 04362527010 04362527020 04362527030 11.1mm 11.1mm 9.994mm 9.862mm 3T
Set Plug 6g 04372527010 04372527020 04372527030 25.4mm 25.4mm 9.994mm 9.862mm 2
M12.0 X 1 LH Taperlock Plug 6H 04302528010 04302528020 04302528030 19.0mm 9.5mm 11.350mm 11.510mm 2
Ring 6g 04362528010 04362528020 04362528030 11.1mm 11.1mm 11.324mm 11.206mm 3T
Set Plug 6g 04372528010 04372528020 04372528030 25.4mm 25.4mm 11.324mm 11.206mm 2
M12.0 X 1.25 LH Taperlock Plug 6H 04302528510 04302528520 04302528530 19.0mm 9.5mm 11.188mm 11.368mm 2
Ring 6g 04362528510 04362528520 04362528530 11.1mm 11.1mm 11.160mm 11.028mm 3T
Set Plug 6g 04372528510 04372528520 04372528530 25.4mm 25.4mm 11.160mm 11.028mm 2
M12.0 X 1.5 LH Taperlock Plug 6H 04302529510 04302529520 04302529530 19.0mm 9.5mm 11.026mm 11.216mm 2
Ring 6g 04362529510 04362529520 04362529530 11.1mm 11.1mm 10.994mm 10.854mm 3T
Set Plug 6g 04372529510 04372529520 04372529530 25.4mm 25.4mm 10.994mm 10.854mm 2
M12.0 X 1.75 LH Taperlock Plug 6H 04302530510 04302530520 04302530530 19.0mm 9.5mm 10.863mm 11.063mm 2
Ring 6g 04362530510 04362530520 04362530530 11.1mm 11.1mm 10.829mm 10.679mm 3T
Set Plug 6g 04372530510 04372530520 04372530530 25.4mm 25.4mm 10.829mm 10.679mm 2
M14.0 X 1 LH Taperlock Plug 6H 04302531010 04302531020 04302531030 22.2mm 12.7mm 13.350mm 13.510mm 3
Ring 6g 04362531010 04362531020 04362531030 14.3mm 14.3mm 13.324mm 13.206mm 4T
Set Plug 6g 04372531010 04372531020 04372531030 31.8mm 31.8mm 13.324mm 13.206mm 3
M14.0 X 1.25 LH Taperlock Plug 6H 04302531510 04302531520 04302531530 22.2mm 12.7mm 13.188mm 13.368mm 3
Ring 6g 04362531510 04362531520 04362531530 14.3mm 14.3mm 13.160mm 13.028mm 4T
Set Plug 6g 04372531510 04372531520 04372531530 31.8mm 31.8mm 13.160mm 13.028mm 3
M14.0 X 1.5 LH Taperlock Plug 6H 04302532010 04302532020 04302532030 22.2mm 12.7mm 13.026mm 13.216mm 3
Ring 6g 04362532010 04362532020 04362532030 14.3mm 14.3mm 12.994mm 12.854mm 4T
Set Plug 6g 04372532010 04372532020 04372532030 31.8mm 31.8mm 12.994mm 12.854mm 3
M14.0 X 2 LH Taperlock Plug 6H 04302533010 04302533020 04302533030 22.2mm 12.7mm 12.701mm 12.913mm 3
Ring 6g 04362533010 04362533020 04362533030 14.3mm 14.3mm 12.663mm 12.503mm 4T
Set Plug 6g 04372533010 04372533020 04372533030 31.8mm 31.8mm 12.663mm 12.503mm 3
M15.0 X 1 LH Taperlock Plug 6H 04302534510 04302534520 04302534530 22.2mm 12.7mm 14.350mm 14.510mm 3
Ring 6g 04362534510 04362534520 04362534530 14.3mm 14.3mm 14.324mm 14.206mm 4T
Set Plug 6g 04372534510 04372534520 04372534530 31.8mm 31.8mm 14.324mm 14.206mm 3
M15.0 X 1.5 LH Taperlock Plug 6H 04302535510 04302535520 04302535530 22.2mm 12.7mm 14.026mm 14.216mm 3
Ring 6g 04362535510 04362535520 04362535530 14.3mm 14.3mm 13.994mm 13.854mm 4T
Set Plug 6g 04372535510 04372535520 04372535530 31.8mm 31.8mm 13.994mm 13.854mm 3
M16.0 X 1 LH Taperlock Plug 6H 04302536010 04302536020 04302536030 22.2mm 12.7mm 15.350mm 15.510mm 3
Ring 6g 04362536010 04362536020 04362536030 14.3mm 14.3mm 15.324mm 15.206mm 4T
Set Plug 6g 04372536010 04372536020 04372536030 31.8mm 31.8mm 15.324mm 15.206mm 3
M16.0 X 1.5 LH Taperlock Plug 6H 04302537010 04302537020 04302537030 22.2mm 12.7mm 15.026mm 15.216mm 3
Ring 6g 04362537010 04362537020 04362537030 14.3mm 14.3mm 14.994mm 14.854mm 4T
Set Plug 6g 04372537010 04372537020 04372537030 31.8mm 31.8mm 14.994mm 14.854mm 3
M16.0 X 2 LH Taperlock Plug 6H 04302538010 04302538020 04302538030 22.2mm 12.7mm 14.701mm 14.913mm 3
Ring 6g 04362538010 04362538020 04362538030 14.3mm 14.3mm 14.663mm 14.503mm 4T
Set Plug 6g 04372538010 04372538020 04372538030 31.8mm 31.8mm 14.663mm 14.503mm 3
M17.0 X 1 LH Taperlock Plug 6H 04302539510 04302539520 04302539530 22.2mm 12.7mm 16.350mm 16.510mm 3
Ring 6g 04362539510 04362539520 04362539530 14.3mm 14.3mm 16.324mm 16.206mm 4T
Set Plug 6g 04372539510 04372539520 04372539530 31.8mm 31.8mm 16.324mm 16.206mm 3
M17.0 X 1.5 LH Taperlock Plug 6H 04302540510 04302540520 04302540530 22.2mm 12.7mm 16.026mm 16.216mm 3
Ring 6g 04362540510 04362540520 04362540530 14.3mm 14.3mm 15.994mm 15.854mm 4T
Set Plug 6g 04372540510 04372540520 04372540530 31.8mm 31.8mm 15.994mm 15.854mm 3
M18.0 X 1 LH Taperlock Plug 6H 04302541010 04302541020 04302541030 22.2mm 12.7mm 17.350mm 17.510mm 3
Ring 6g 04362541010 04362541020 04362541030 14.3mm 14.3mm 17.324mm 17.206mm 4T
Set Plug 6g 04372541010 04372541020 04372541030 31.8mm 31.8mm 17.324mm 17.206mm 3
M18.0 X 1.5 LH Taperlock Plug 6H 04302542010 04302542020 04302542030 22.2mm 12.7mm 17.026mm 17.216mm 3
Ring 6g 04362542010 04362542020 04362542030 14.3mm 14.3mm 16.994mm 16.854mm 4T
Set Plug 6g 04372542010 04372542020 04372542030 31.8mm 31.8mm 16.994mm 16.854mm 3
M18.0 X 2 LH Taperlock Plug 6H 04302542510 04302542520 04302542530 22.2mm 12.7mm 16.701mm 16.913mm 3
Ring 6g 04362542510 04362542520 04362542530 14.3mm 14.3mm 16.663mm 16.503mm 4T
Set Plug 6g 04372542510 04372542520 04372542530 31.8mm 31.8mm 16.663mm 16.503mm 3
M18.0 X 2.5 LH Taperlock Plug 6H 04302543010 04302543020 04302543030 22.2mm 12.7mm 16.376mm 16.600mm 3
Ring 6g 04362543010 04362543020 04362543030 19.0mm 14.3mm 16.334mm 16.164mm 4T
Set Plug 6g 04372543010 04372543020 04372543030 47.6mm 31.8mm 16.334mm 16.164mm 3
M20.0 X 1 LH Taperlock Plug 6H 04302544510 04302544520 04302544530 22.2mm 12.7mm 19.350mm 19.510mm 3
Ring 6g 04362544510 04362544520 04362544530 14.3mm 14.3mm 19.324mm 19.206mm 4T
Set Plug 6g 04372544510 04372544520 04372544530 31.8mm 31.8mm 19.324mm 19.206mm 3
M20.0 X 1.5 LH Taperlock Plug 6H 04302545510 04302545520 04302545530 22.2mm 12.7mm 19.026mm 19.216mm 3
Ring 6g 04362545510 04362545520 04362545530 14.3mm 14.3mm 18.994mm 18.854mm 4T
Set Plug 6g 04372545510 04372545520 04372545530 31.8mm 31.8mm 18.994mm 18.854mm 3
M20.0 X 2 LH Taperlock Plug 6H 04302546010 04302546020 04302546030 22.2mm 12.7mm 18.701mm 18.913mm 3
Ring 6g 04362546010 04362546020 04362546030 14.3mm 14.3mm 18.663mm 18.503mm 4T
Set Plug 6g 04372546010 04372546020 04372546030 31.8mm 31.8mm 18.663mm 18.503mm 3
M20.0 X 2.5 LH Taperlock Plug 6H 04302546510 04302546520 04302546530 22.2mm 12.7mm 18.376mm 18.600mm 3
Ring 6g 04362546510 04362546520 04362546530 19.0mm 14.3mm 18.334mm 18.164mm 4T
Set Plug 6g 04372546510 04372546520 04372546530 47.6mm 31.8mm 18.334mm 18.164mm 3
M22.0 X 1 LH Taperlock Plug 6H 04302547010 04302547020 04302547030 25.4mm 15.9mm 21.350mm 21.510mm 4
Ring 6g 04362547010 04362547020 04362547030 17.5mm 17.5mm 21.324mm 21.206mm 5T
Set Plug 6g 04372547010 04372547020 04372547030 38.1mm 38.1mm 21.324mm 21.206mm 4
M22.0 X 1.5 LH Taperlock Plug 6H 04302548010 04302548020 04302548030 25.4mm 15.9mm 21.026mm 21.216mm 4
Ring 6g 04362548010 04362548020 04362548030 17.5mm 17.5mm 20.994mm 20.854mm 5T
Set Plug 6g 04372548010 04372548020 04372548030 38.1mm 38.1mm 20.994mm 20.854mm 4
M22.0 X 2 LH Taperlock Plug 6H 04302548510 04302548520 04302548530 25.4mm 15.9mm 20.701mm 20.913mm 4
Ring 6g 04362548510 04362548520 04362548530 17.5mm 17.5mm 20.663mm 20.503mm 5T
Set Plug 6g 04372548510 04372548520 04372548530 38.1mm 38.1mm 20.663mm 20.503mm 4
M22.0X 2.5 LH Taperlock Plug 6H 04302549010 04302549020 04302549030 25.4mm 15.9mm 20.376mm 20.600mm 4
Ring 6g 04362549010 04362549020 04362549030 23.8mm 17.5mm 20.334mm 20.164mm 5T
Set Plug 6g 04372549010 04372549020 04372549030 54.0mm 38.1mm 20.334mm 20.164mm 4
M24.0 X 1 LH Taperlock Plug 6H 04302549510 04302549520 04302549530 25.4mm 15.9mm 23.350mm 23.520mm 4
Ring 6g 04362549510 04362549520 04362549530 17.5mm 17.5mm 23.324mm 23.199mm 5T
Set Plug 6g 04372549510 04372549520 04372549530 38.1mm 38.1mm 23.324mm 23.199mm 4
M24.0 X 1.5 LH Taperlock Plug 6H 04302550010 04302550020 04302550030 25.4mm 15.9mm 23.026mm 23.226mm 4
Ring 6g 04362550010 04362550020 04362550030 17.5mm 17.5mm 22.994mm 22.844mm 5T
Set Plug 6g 04372550010 04372550020 04372550030 38.1mm 38.1mm 22.994mm 22.844mm 4
M24.0 X 2 LH Taperlock Plug 6H 04302550510 04302550520 04302550530 25.4mm 15.9mm 22.701mm 22.925mm 4
Ring 6g 04362550510 04362550520 04362550530 17.5mm 17.5mm 22.663mm 22.493mm 5T
Set Plug 6g 04372550510 04372550520 04372550530 38.1mm 38.1mm 22.663mm 22.493mm 4
M24.0 X 3 LH Taperlock Plug 6H 04302551510 04302551520 04302551530 25.4mm 15.9mm 22.051mm 22.316mm 4
Ring 6g 04362551510 04362551520 04362551530 23.8mm 17.5mm 22.003mm 21.803mm 5T
Set Plug 6g 04372551510 04372551520 04372551530 54.0mm 38.1mm 22.003mm 21.803mm 4
M25.0 X 1 LH Taperlock Plug 6H 04302552010 04302552020 04302550030 25.4mm 15.9mm 24.350mm 24.520mm 4
Ring 6g 04362552010 04362552020 04362552030 17.5mm 17.5mm 24.324mm 24.199mm 5T
Set Plug 6g 04372552010 04372552020 04372552030 38.1mm 38.1mm 24.324mm 24.199mm 4
M25.0 X 1.5 LH Taperlock Plug 6H 04302553010 04302553020 04302553030 25.4mm 15.9mm 24.026mm 24.226mm 4
Ring 6g 04362553010 04362553020 04362553030 17.5mm 17.5mm 23.994mm 23.844mm 5T
Set Plug 6g 04372553010 04372553020 04372553030 38.1mm 38.1mm 23.994mm 23.844mm 4
M25.0 X 2 LH Taperlock Plug 6H 04302554010 04302554020 04302554030 25.4mm 15.9mm 23.701mm 23.925mm 4
Ring 6g 04362554010 04362554020 04362554030 17.5mm 17.5mm 23.663mm 23.493mm 5T
Set Plug 6g 04372554010 04372554020 04372554030 38.1mm 38.1mm 23.663mm 23.493mm 4
M26.0 X 1 LH Taperlock Plug 6H 04302555510 04302555520 04302555530 25.4mm 15.9mm 25.350mm 25.520mm 4
Ring 6g 04362555510 04362555520 04362555530 17.5mm 17.5mm 25.324mm 25.199mm 5T
Set Plug 6g 04372555510 04372555520 04372555530 38.1mm 38.1mm 25.324mm 25.199mm 4
M26.0 X 1.5 LH Taperlock Plug 6H 04302556510 04302556520 04302556530 25.4mm 15.9mm 25.026mm 25.226mm 4
Ring 6g 04362556510 04362556520 04362556530 17.5mm 17.5mm 24.994mm 24.844mm 5T
Set Plug 6g 04372556510 04372556520 04372556530 38.1mm 38.1mm 24.994mm 24.844mm 4
M27.0 X 1 LH Taperlock Plug 6H 04302557010 04302557020 04302557030 25.4mm 15.9mm 26.350mm 26.520mm 4
Ring 6g 04362557010 04362557020 04362557030 17.5mm 17.5mm 26.324mm 26.199mm 5T
Set Plug 6g 04372557010 04372557020 04372557030 38.1mm 38.1mm 26.324mm 26.199mm 4
M27.0 X 1.5 LH Taperlock Plug 6H 04302557510 04302557520 04302557530 25.4mm 15.9mm 26.026mm 26.226mm 4
Ring 6g 04362557510 04362557520 04362557530 17.5mm 17.5mm 25.994mm 25.844mm 5T
Set Plug 6g 04372557510 04372557520 04372557530 38.1mm 38.1mm 25.994mm 25.844mm 4
M27.0 X 2 LH Taperlock Plug 6H 04302558010 04302558020 04302558030 25.4mm 15.9mm 25.701mm 25.925mm 4
Ring 6g 04362558010 04362558020 04362558030 17.5mm 17.5mm 25.663mm 25.493mm 5T
Set Plug 6g 04372558010 04372558020 04372558030 38.1mm 38.1mm 25.663mm 25.493mm 4
M27.0 X 3 LH Taperlock Plug 6H 04302559010 04302559020 04302559030 25.4mm 15.9mm 25.051mm 25.316mm 4
Ring 6g 04362559010 04362559020 04362559030 23.8mm 17.5mm 25.003mm 24.803mm 5T
Set Plug 6g 04372559010 04372559020 04372559030 54.0mm 38.1mm 25.003mm 24.803mm 4
M28.0 X 1 LH Taperlock Plug 6H 04302560510 04302560520 04302560530 25.4mm 15.9mm 27.350mm 27.520mm 4
Ring 6g 04362560510 04362560520 04362560530 17.5mm 17.5mm 27.324mm 27.199mm 5T
Set Plug 6g 04372560510 04372560520 04372560530 38.1mm 38.1mm 27.324mm 27.199mm 4
M28.0 X 1.5 LH Taperlock Plug 6H 04302561510 04302561520 04302561530 25.4mm 15.9mm 27.026mm 27.226mm 4
Ring 6g 04362561510 04362561520 04362561530 17.5mm 17.5mm 26.994mm 26.844mm 5T
Set Plug 6g 04372561510 04372561520 04372561530 38.1mm 38.1mm 26.994mm 26.844mm 4
M28.0 X 2 LH Taperlock Plug 6H 04302562510 04302562520 04302562530 25.4mm 15.9mm 26.701mm 26.925mm 4
Ring 6g 04362562510 04362562520 04362562530 17.5mm 17.5mm 26.663mm 26.493mm 5T
Set Plug 6g 04372562510 04372562520 04372562530 38.1mm 38.1mm 26.663mm 26.493mm 4
M30.0 X 1 LH Taperlock Plug 6H 04302563010 04302563020 04302563030 25.4mm 19.0mm 29.350mm 29.520mm 5
Ring 6g 04362563010 04362563020 04362563030 19.0mm 19.0mm 29.324mm 29.199mm 6T
Set Plug 6g 04372563010 04372563020 04372563030 41.3mm 41.3mm 29.324mm 29.199mm 5
M30.0 X 1.5 LH Taperlock Plug 6H 04302564010 04302564020 04302564030 25.4mm 19.0mm 29.026mm 29.226mm 5
Ring 6g 04362564010 04362564020 04362564030 19.0mm 19.0mm 28.994mm 28.844mm 6T
Set Plug 6g 04372564010 04372564020 04372564030 41.3mm 41.3mm 28.994mm 28.844mm 5
M30.0 X 2 LH Taperlock Plug 6H 04302565010 04302565020 04302565030 25.4mm 19.0mm 28.701mm 28.925mm 5
Ring 6g 04362565010 04362565020 04362565030 19.0mm 19.0mm 28.663mm 28.493mm 6T
Set Plug 6g 04372565010 04372565020 04372565030 41.3mm 41.3mm 28.663mm 28.493mm 5
M30.0 X 3.5 LH Taperlock Plug 6H 04302566010 04302566020 04302566030 31.8mm 19.0mm 27.727mm 28.007mm 5
Ring 6g 04362566010 04362566020 04362566030 28.6mm 19.0mm 27.674mm 27.462mm 6T
Set Plug 6g 04372566010 04372566020 04372566030 60.3mm 41.3mm 27.674mm 27.462mm 5
M32.0 X 1.5 LH Taperlock Plug 6H 04302567510 04302567520 04302567530 25.4mm 19.0mm 31.026mm 31.226mm 5
Ring 6g 04362567510 04362567520 04362567530 19.0mm 19.0mm 30.994mm 30.844mm 6T
Set Plug 6g 04372567510 04372567520 04372567530 41.3mm 41.3mm 30.994mm 30.844mm 5
M32.0 X 2 LH Taperlock Plug 6H 04302568510 04302568520 04302568530 25.4mm 19.0mm 30.701mm 30.925mm 5
Ring 6g 04362568510 04362568520 04362568530 19.0mm 19.0mm 30.663mm 30.493mm 6T
Set Plug 6g 04372568510 04372568520 04372568530 41.3mm 41.3mm 30.663mm 30.493mm 5
M33.0 X 1.5 LH Taperlock Plug 6H 04302569010 04302569020 04302569030 25.4mm 19.0mm 32.026mm 32.226mm 5
Ring 6g 04362569010 04362569020 04362569030 19.0mm 19.0mm 31.994mm 31.844mm 6T
Set Plug 6g 04372569010 04372569020 04372569030 41.3mm 41.3mm 31.994mm 31.844mm 5
M33.0 X 2 LH Taperlock Plug 6H 04302570010 04302570020 04302570030 25.4mm 19.0mm 31.701mm 31.925mm 5
Ring 6g 04362570010 04362570020 04362570030 19.0mm 19.0mm 31.663mm 31.493mm 6T
Set Plug 6g 04372570010 04372570020 04372570030 41.3mm 41.3mm 31.663mm 31.493mm 5
M33.0 X 3.5 LH Taperlock Plug 6H 04302571010 04302571020 04302571030 31.8mm 19.0mm 30.727mm 31.007mm 5
Ring 6g 04362571010 04362571020 04362571030 28.6mm 19.0mm 30.674mm 30.462mm 6T
Set Plug 6g 04372571010 04372571020 04372571030 60.3mm 41.3mm 30.674mm 30.462mm 5
M35.0 X 1.5 LH Taperlock Plug 6H 04302572510 04302572520 04302572530 25.4mm 19.0mm 34.026mm 34.226mm 5
Ring 6g 04362572510 04362572520 04362572530 19.0mm 19.0mm 33.994mm 33.844mm 6T
Set Plug 6g 04372572510 04372572520 04372572530 41.3mm 41.3mm 33.994mm 33.844mm 5
M36.0 X 1.5 LH Taperlock Plug 6H 04302573010 04302573020 04302573030 25.4mm 19.0mm 35.026mm 35.226mm 5
Ring 6g 04362573010 04362573020 04362573030 19.0mm 19.0mm 34.994mm 34.844mm 6T
Set Plug 6g 04372573010 04372573020 04372573030 41.3mm 41.3mm 34.994mm 34.844mm 5
M36.0 X 2 LH Taperlock Plug 6H 04302574010 04302574020 04302574030 25.4mm 19.0mm 34.701mm 34.925mm 5
Ring 6g 04362574010 04362574020 04362574030 19.0mm 19.0mm 34.663mm 34.493mm 6T
Set Plug 6g 04372574010 04372574020 04372574030 41.3mm 41.3mm 34.663mm 34.493mm 5
M36.0 X 3 LH Taperlock Plug 6H 04302575010 04302575020 04302575030 31.8mm 19.0mm 34.051mm 34.316mm 5
Ring 6g 04362575010 04362575020 04362575030 28.6mm 19.0mm 34.003mm 33.803mm 6T
Set Plug 6g 04372575010 04372575020 04372575030 60.3mm 41.3mm 34.003mm 33.803mm 5
M36.0 X 4 LH Taperlock Plug 6H 04302576010 04302576020 04302576030 31.8mm 19.0mm 33.402mm 33.702mm 5
Ring 6g 04362576010 04362576020 04362576030 28.6mm 19.0mm 33.342mm 33.118mm 6T
Set Plug 6g 04372576010 04372576020 04372576030 60.3mm 41.3mm 33.342mm 33.118mm 5
M38.0 X 1.5 LH Taperlock Plug 6H 04302577510 04302577520 04302577530 25.4mm 19.0mm 37.026mm 37.226mm 5
Ring 6g 04362577510 04362577520 04362577530 19.0mm 19.0mm 36.994mm 36.844mm 6T
Set Plug 6g 04372577510 04372577520 04372577530 41.3mm 41.3mm 36.994mm 36.844mm 5
M39.0 X 1.5 LH Trilock Plug 6H 04302578010 04302578020 04302578030 31.8mm 22.2mm 38.026mm 38.226mm 5-1/2
Ring 6g 04362578010 04362578020 04362578030 20.6mm 20.6mm 37.994mm 37.844mm
Set Plug 6g 04372578010 04372578020 04372578030 47.6mm 47.6mm 37.994mm 37.844mm 5-1/2
M39.0 X 2 LH Trilock Plug 6H 04302579010 04302579020 04302579030 31.8mm 22.2mm 37.701mm 37.925mm 5-1/2
Ring 6g 04362579010 04362579020 04362579030 20.6mm 20.6mm 37.663mm 37.493mm
Set Plug 6g 04372579010 04372579020 04372579030 47.6mm 47.6mm 37.663mm 37.493mm 5-1/2
M39.0 X 3 LH Trilock Plug 6H 04302580010 04302580020 04302580030 31.8mm 22.2mm 37.051mm 37.316mm 5-1/2
Ring 6g 04362580010 04362580020 04362580030 31.8mm 20.6mm 37.003mm 36.803mm
Set Plug 6g 04372580010 04372580020 04372580030 73.0mm 47.6mm 37.003mm 36.803mm 5-1/2
M39.0 X 4 LH Trilock Plug 6H 04302581010 04302581020 04302581030 47.6mm 22.2mm 36.402mm 36.702mm 5-1/2
Ring 6g 04362581010 04362581020 04362581030 31.8mm 20.6mm 36.342mm 36.118mm
Set Plug 6g 04372581010 04372581020 04372581030 73.0mm 47.6mm 36.342mm 36.118mm 5-1/2
Swipe
