Mitee-Bite Original Fixture Clamps

Cam action original Mitee-Bite fixture clamp. Provides fast strong clamping action. Small sizes and low profile.

more
  • Model 11MITEE
  • Manufacturer Code Original Fixture Clamps
Brand
Mitee-Bite
Mitee-Bite
  • Type

    Clamp

Swipe

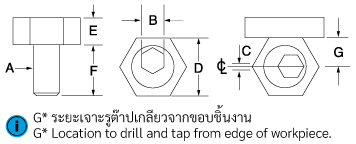

Mitee-Bite Original Fixture Clamps drawing
Order
Code
Material A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
G*
(mm)
Torque (N.m.) Holding Force Clamps
Per Pack
11MITEE-50204 Steel
+
Brass
M4 3 0.76 7.93 2.80 9.6 3.80 2.0 910 N 10
11MITEE-50206 M6 4 1.01 15.86 4.75 11.2 7.80 8.5 3,558 N 10
11MITEE-50208 M8 5 1.01 20.61 4.55 15.0 10.15 11.3 3,558 N 12
11MITEE-50210 M10 7 1.27 20.61 6.35 19.0 10.15 28.0 8,895 N 10
11MITEE-50212 M12 8 2.03 25.38 9.52 22.8 12.70 88.0 17,790 N 8
11MITEE-50216 M16 12 2.54 30.13 12.70 28.5 15.00 125.0 26,680 N 4
11MITEE-50218 M8 5 1.01 20.61 4.55 15.0 10.15 11.3 3,558 N 50
11MITEE-10214 Stainless
Steel
M4 3 .76 7.93 2.80 9.6 3.80 2.0 910 N 4
11MITEE-10203 M6 4 1.01 15.86 4.75 11.2 7.80 8.50 3,558 N 4
11MITEE-10213 M8 5 1.01 20.60 6.35 15.0 10.15 11.30 3,558 N 4
Swipe
Order
Code
Material A
(inch)
B
(inch)
C
(inch)
D
(inch)
E
(inch)
F
(inch)
G*
(inch)
Torque
(Ft/L bs)
Holding Force Clamps
Per Pack
11MITEE-10214 Stainless
Steel
8 � 32 5/64 .030 .312 .110 .350 .150 1.5 205 lbs 4
11MITEE-10203 1/4 � 20 1/8 .040 .625 .190 .470 .308 6.2 800 lbs 4
11MITEE-10213 5/16 -18 3/16 .040 .812 .250 .460 .400 8.3 800 lbs 4
Swipe
