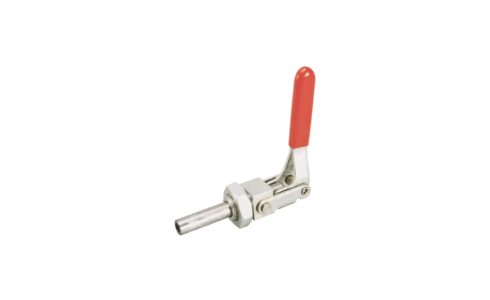

Push-Action Toggle Clamp (Front Mount)

Push-Action Toggle Clamp front mounting type.

Model: 11PAFM

more
  • Model 11PAFM
  • Manufacturer Code PAFM
Brand
Toolfast
Toolfast
  • Clamp Style

    Push-Action

  • Body Material

    Steel

Swipe
Push-Action Toggle Clamp (Front Mount) drawing
Order
Code		 PLUNGER DIA dØ TØ TRAPPED
HOLE		 MOUNTING THREAD
SIZE AØ		 PLUNGER TRAVEL B C D J L W H HOLDING CAPACITY N. W. Kgs.
11PAFM-9 9 M-5 x 0.8 P M-16 x 1.5 P 25 11 6 36 35 26 75 50 Kgs. 0.13
11PAFM-12 12 M-8 x 1.25 P M-20 x 1.5 P 36 16 8 41 50 31 103 100 Kgs. 0.32
11PAFM-16 16 M-10 x 1.5 P M-24 x 2.0 P 65 25 10 65 84 43 143 350 Kgs. 0.86
