Cam Clamp

Cam type clamp for fast action clamping.
*stud, nut, and spring not included

Model: 11TCC

more
  • Model 11TCC
  • Manufacturer Code TCC
Brand
Toolfast
Toolfast
  • Type

    Clamp

Swipe

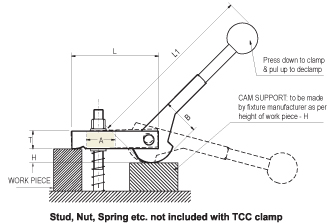

Cam Clamp drawing
Order
Code		 SUITABLE FOR CLAMPING BOLT L T WIDTH OF CLAMP A B L1 H HOLDING CAPACITY N. W. Kgs.
11TCC-10 M10 90 19 30 30 38 180 14 1400 Kgs. 0.56
11TCC-12 M12 100 24 38 35 38 180 12 2000 Kgs. 0.86
