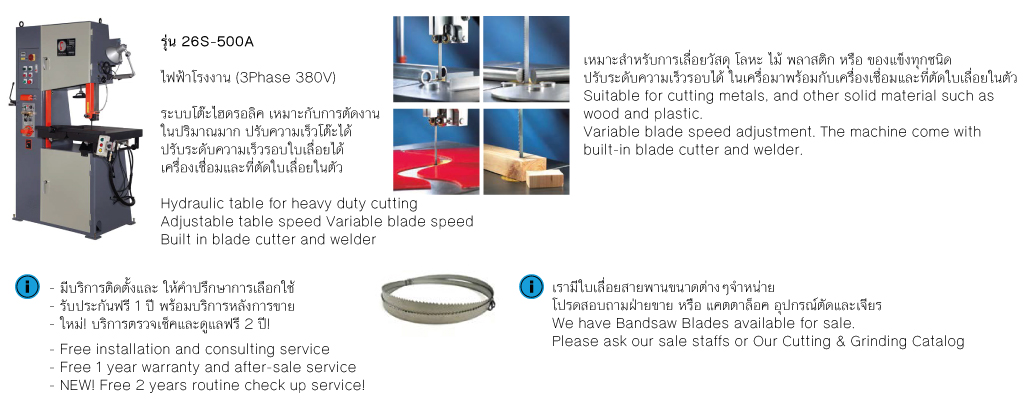

Auto-Feed Vertical Band Saw Machine S-500A
Auto Feed Vertical Band Saw Machine 'SW' made in Taiwan. The machine can cut work piece in straight line fast and accurately. Easy to use and can be use for mass produce work.
Suitable for cutting metals, and other solid material such as wood and plastic. The machine come with built-in blade cutter and welder.
We provide after sale service by our technician.
more
- Model 26S-500A
- Manufacturer Code S-500A
Download
View Online
Download
Swipe
| Order Code | 26S-500A |
| Max. Thickness Capacity | 320mm |
| Max. Throat Capacity | 506mm |
| Table Incline (front & rear) | 10° |
| Table Incline (left & right) | 15° |
| Table Size | 600 x 550mm |
| Table Working Stroke | 320mm |
| Max. Blade Length | 4070mm |
| Main Motor | 2HP (1.50kW) |
| Blade Speed (M/min) | 36-580M/min |
| Dimension | L : 1270mm W : 1192mm H : 2000mm |
| Butt-Welder Capacity | 19mm |
| Max. Blade Width | 30mm |
| Electrical Power *options are available |
3Phase (220/380V) |
| Weight | 660kgs |
