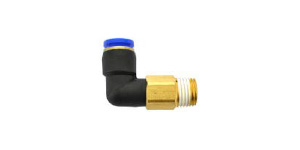

Elbow Air Fitting (Extended Male)

Extended Male Elbow pneumatic one touch fitting.
Model: 21SPLEL

more
  • Model 21SPLEL
  • Manufacturer Code SPLEL/PLEL
Brand
OIL FREE
OIL FREE
  • Type

    Threaded

  • Thread Type

    Male

  • Features

    Elbow

Swipe
Elbow Air Fitting (Extended Male) drawing
Model Matching Tube
O.D.		 Thread Size
D Nominal R(PT)
21SPLEL 4 01PT 1/8PT
02PT 1/4PT
03PT 3/8PT
6 01PT 1/8PT
02PT 1/4PT
03PT 3/8PT
8 01PT 1/8PT
02PT 1/4PT
03PT 3/8PT
04PT 1/2PT
10 01PT 1/8PT
02PT 1/4PT
03PT 3/8PT
04PT 1/2PT
12 02PT 1/4PT
03PT 3/8PT
04PT 1/2PT
Model Matching Tube
O.D.		 Thread Size
D Nominal R(PT)
21SPLEL 4 01PT 1/8PT
02PT 1/4PT
03PT 3/8PT
6 01PT 1/8PT
02PT 1/4PT
03PT 3/8PT
8 01PT 1/8PT
02PT 1/4PT
03PT 3/8PT
04PT 1/2PT
10 01PT 1/8PT
02PT 1/4PT
03PT 3/8PT
04PT 1/2PT
12 02PT 1/4PT
03PT 3/8PT
04PT 1/2PT
