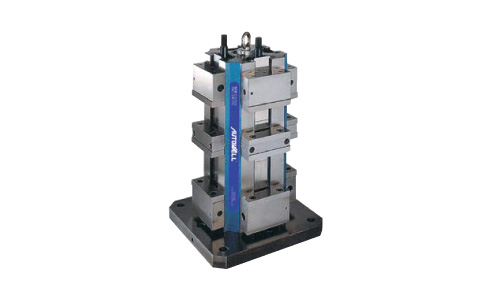

Lockwell Double Station Tower Vise

Autowell TLR clamp multiple parts at once with double clamping vises, both jaws move in and out at the same time. Suitable for CNC machine work clamping with high clamping force, and precision machining from Lockwell anti-lifting mechanism.

This vise is Match Vise and can be use in row for vise of the same model due to precision vise base height.

Body Material : FCD-60
Body Hardness : HS65
Jaw Material : S50C
Jaw Hardness : HRC54

Lockwell : Anti workpiece lifting mechanic

more
  • Model 02TLR
  • Manufacturer Code TLR
Brand
Autowell
Autowell
  • Holding System

    Lockwell

  • Speciality

    Double Station

    Match Vise

    Multi Clamps

Swipe

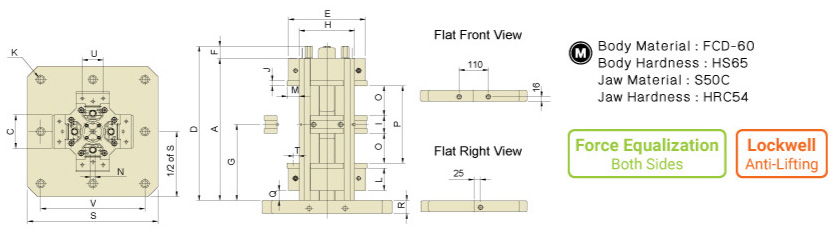

Lockwell Double Station Tower Vise drawing
Order Code A C D E F G H I J K L M
02TLR4400 425 102 479 256 54 222.5 190 55 15 ø18 69 38
02TLR4500 425 102 479 256 54 222.5 190 55 15 ø18 69 38
02TLR6400 540 152 556 313 16 280 280 66 18 ø18 86.5 44.5
02TLR6500 540 152 556 313 16 280 280 66 18 ø18 86.5 44.5
Swipe
Order Code N O P Q R S T U V Weight
Weight
02TLR4400 14 90 235 20 400 17.5 63.5 63.5 320 200kg
02TLR4500 14 90 235 20 500 17.5 63.5 63.5 400 210kg
02TLR6400 19 125 326 20 400 23.8 98.4 98.4 320 240kg
02TLR6500 19 125 326 20 500 23.8 98.4 98.4 400 250kg
