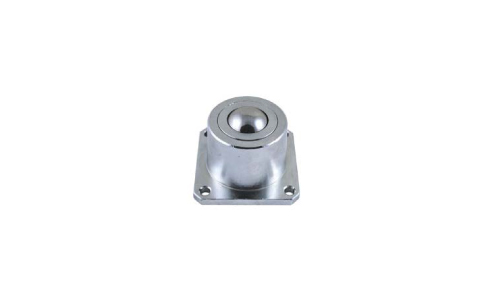

Heavy Duty Base Mount Ball Roller
Base Mount Ball Roller, Heavy Duty type model 25SSBRSD for assembly into transfer units.
Use for transfer of heavy objects such as mold, container, etc.
more
- Model 25SSBRSD
- Manufacturer Code 25SSBRSD12/25SSBRSD25/25SSBRSD30/25SSBRSD38/25SSBRSD51
Download
Swipe

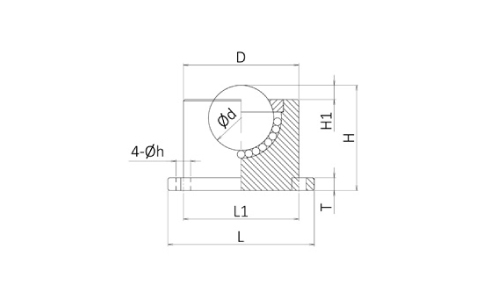

| Order Code | Ball d | D | L | L1 | H | H1 | T | h (for screw) |
Load Capacity |
Max Load Capacity | Net Weight |
|
| 25SSBRSD12 | 12mm | 1/2” | 24 | 45 | 35 | 23 | 3.5 | 3 | 3.6 | 15kg | 20kg | 180g |
| 25SSBRSD25 | 25.4mm | 1” | 45 | 57 | 45 | 41 | 5.6 | 5 | 5.6 | 150kg | 200kg | 490g |
| 25SSBRSD30 | 30.16mm | 1-3/16” | 54 | 68 | 54 | 49 | 6.5 | 6 | 6.5 | 250kg | 300kg | 1200g |
| 25SSBRSD38 | 38.1mm | 1-1/2” | 60 | 76 | 58 | 62 | 13 | 13 | 7.1 | 350kg | 400kg | 1800g |
| 25SSBRSD51 | 51mm | 2” | 100 | 127 | 102 | 98 | 14.3 | 9.6 | 11 | 600kg | 700kg | 5600g |
