Mitee-Bite Uniforce® Clamps
The compact, economical MITEE-BITE Uniforce® Clamp enables you to fixture more parts on the machine table. The specially designed steel wedge spreads the clamping force uniformly on both sides of the 7075-T6 aluminum channel.
• Increases production.
• Minimizes tool changes.
• Holds two parts with equilateral clamping action.
• Ideal for clamping flat or round work pieces.
• Reduces wasted space.
• Easily mated to hydraulic pull cylinders.
• Ideal for pallet changers.
more
- Model Uniforce
- Manufacturer Code MITEE
Swipe

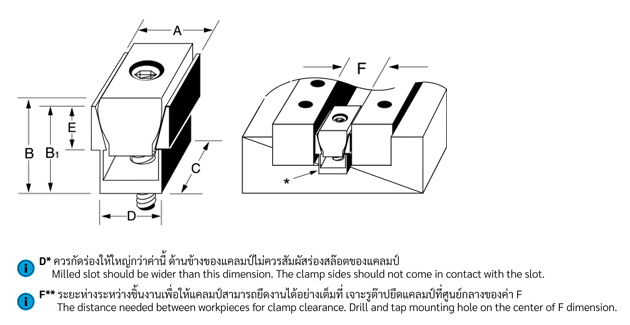

| Order Code | Model | A (mm) |
B (mm) |
B1 (mm) |
C (mm) |
D* (mm) |
E (mm) |
F** (mm) |
Thread Size |
Maximum Spread(mm) |
Max. Torque (N.m.) |
Holding Force (N.) |
No. Per Pack |
Key Size (mm) |
| 11MITEE-80250 | 250 | 6.1 | 6.9 | 6.4 | 8.1 | 5.3 | 3.6 | 6.4 | M2 | 6.7 | 0.7 | 880 | 6 | 1.5 |
| 11MITEE-80375 | 375 | 9.1 | 9.7 | 9.5 | 11.9 | 7.9 | 4.7 | 9.5 | M2.5 | 10 | 1.5 | 1350 | 6 | 2 |
| 11MITEE-80500 | 500 | 12.3 | 14.5 | 12.7 | 15.9 | 10.4 | 5.6 | 12.7 | M4 | 13.2 | 3.4 | 2225 | 8 | 3 |
| 11MITEE-80750 | 750 | 18.6 | 19 | 19.05 | 23.8 | 16.1 | 9.5 | 19 | M6 | 20.3 | 13.5 | 6675 | 6 | 5 |
| 11MITEE-81000 | 1000 | 24.8 | 25.9 | 25.4 | 31.7 | 20.8 | 12.7 | 25.4 | M8 | 26.9 | 25 | 11125 | 4 | 6 |
| 11MITEE-81500 | 1500 | 37.3 | 38.6 | 38.1 | 47.6 | 30.8 | 19 | 38.1 | M12 | 39.9 | 38.4 | 15575 | 2 | 10 |
| 11MITEE-82000 | 2000 | 49.7 | 51.5 | 50.8 | 63.5 | 41.2 | 25.4 | 50.8 | M16 | 53 | 74.6 | 26700 | 2 | 14 |
