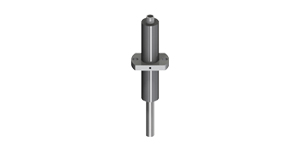

Pre-Holding Push Pin Sets (Air Hole)
Pre-Holding Push Pin Sets (Air Hole) standard locating component for metal stamping die.
Steel Tip Model: 25SD-PAEA-S
Urethane Tip Model: 25SD-PAEA-U
more
- Model 25SD-PAEA-S/25SD-PAEA-U
- Manufacturer Code SD-PAEA-S/SD-PAEA-U/PAEAS/PAEAU
View Online
Download
Swipe
| Model | P | ST | H 1mm increments |
Case | Pushing Pins | Mounting Flange | Pressing Load N (kgf) | S | L | |||||||||||||
| D | M | G | R | U | U1 | ℓ | M1 | P1 | A | A1 | B | d | 0.3MPa | 0.4MPa | 0.5MPa | Steel | Urethane | |||||
| 25SD-PAEA-S 25SD-PAEA-U |
13 | 50 | 0 ~ 80 | 27.2 | 22 | 22 | 20 | 15 | 20 | 9 | M6 | 13.5 | 70 | 52 | 40 | 11 | 41.2 (4.2) |
54.9 (5.6) |
66.7 (6.8) |
60 | 70 | 100 |
| 100 | 0 ~ 130 | 110 | 120 | 150 | ||||||||||||||||||
| 150 | 0 ~ 180 | 160 | 170 | 200 | ||||||||||||||||||
| 16 | 50 | 0 ~ 85 | 34 | 26 | 27 | 25 | 20 | 25 | 12 | M8 | 16.5 | 80 | 60 | 50 | 11 | 63.7 (6.5) |
83.4 (8.5) |
103 (10.5) |
60 | 75 | 105 | |
| 100 | 0 ~ 135 | 110 | 125 | 155 | ||||||||||||||||||
| 150 | 0 ~ 185 | 160 | 175 | 205 | ||||||||||||||||||
| 200 | 0 ~ 235 | 210 | 225 | 235 | ||||||||||||||||||
