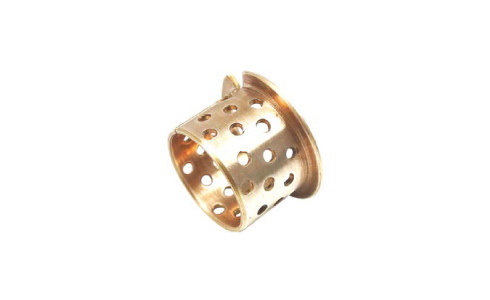

บุชมีบ่าทองเหลืองบรอนซ์ มีรู
Flange Bronze Bush with Through Hole
บุชทองเหลืองบรอนซ์ แบบมีบ่า มีร่องรูน้ำมันช่วยเก็บน้ำมันหล่อลื่นขณะใช้งาน รุ่น 25SBTB-F
Material : FB092
more
- Model 25SBTB-F
- Manufacturer Code FB092/LD
ดูออนไลน์
ดาวน์โหลด
เลื่อนได้
| d | L | D | D1 | f1 | f2 | ||||||||||
| 25 | 15 | 20 | 25 | 28 | 35 | 0.8 | 0.4 | ||||||||
| 30 | 20 | 25 | 34 | 45 | 1.0 | 0.6 | |||||||||
| 35 | 20 | 25 | 30 | 35 | 39 | 50 | |||||||||
| 40 | 25 | 30 | 35 | 40 | 44 | 55 | |||||||||
| 45 | 30 | 35 | 40 | 50 | 50 | 60 | 1.2 | 0.8 | |||||||
| 50 | 30 | 35 | 40 | 50 | 55 | 65 | |||||||||
| 55 | 30 | 35 | 40 | 50 | 60 | 70 | |||||||||
| 60 | 30 | 35 | 40 | 50 | 60 | 65 | 75 | ||||||||
| 65 | 30 | 35 | 40 | 50 | 60 | 70 | 80 | ||||||||
| 70 | 35 | 40 | 50 | 60 | 70 | 75 | 85 | ||||||||
| 75 | 35 | 40 | 50 | 60 | 70 | 80 | 90 | ||||||||
| 80 | 35 | 40 | 50 | 60 | 70 | 80 | 85 | 100 | 1.4 | 0.8 | |||||
| 90 | 50 | 60 | 70 | 80 | 90 | 95 | 110 | ||||||||
| 100 | 50 | 60 | 70 | 80 | 90 | 105 | 120 | ||||||||
| 110 | 50 | 60 | 70 | 80 | 90 | 115 | 130 | ||||||||
| 120 | 50 | 60 | 70 | 80 | 90 | 125 | 140 | ||||||||
| 130 | 60 | 70 | 80 | 90 | 135 | 155 | |||||||||
| 140 | 60 | 70 | 80 | 90 | 145 | 165 | |||||||||
| 150 | 60 | 70 | 80 | 90 | 155 | 180 | |||||||||
| 160 | 60 | 70 | 80 | 90 | 165 | 190 | |||||||||
| 170 | 60 | 70 | 80 | 90 | 175 | 200 | |||||||||
| 180 | 60 | 70 | 80 | 90 | 185 | 215 | |||||||||
| 190 | 60 | 70 | 80 | 90 | 195 | 225 | |||||||||
| 200 | 60 | 70 | 80 | 90 | 205 | 235 | |||||||||
| 225 | 60 | 70 | 80 | 90 | 230 | 260 | |||||||||
| 250 | 60 | 70 | 80 | 90 | 255 | 290 | |||||||||
| 265 | 60 | 70 | 80 | 90 | 270 | 305 | |||||||||
| 285 | 60 | 70 | 80 | 90 | 290 | 325 | |||||||||
| 300 | 60 | 70 | 80 | 90 | 305 | 340 | |||||||||
