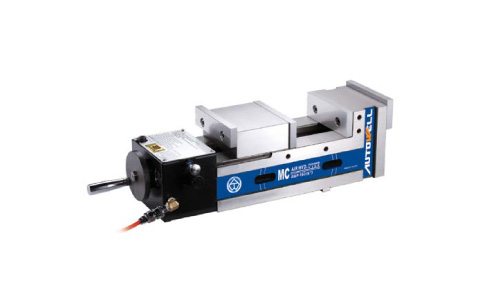

Wellock Air Power Vise

Autowell AMP pneumatic vise control jaws with air power. Suitable for automation line on CNC machine work clamping with high clamping force, and precision machining from Wellock reduced-lifting mechanism.

This vise is Match Vise and can be use in row for vise of the same model due to precision vise base height.

Wellock : Reduced workpiece lifting

Body Material : FCD-60
Body Hardness : HS65
Jaw Material : S50C
Jaw Hardness : HRC54

more
  • Model 02AMP
  • Manufacturer Code AMP
Brand
Autowell
Autowell
  • Holding System

    Wellock

    Air Power

  • Speciality

    Match Vise

Swipe

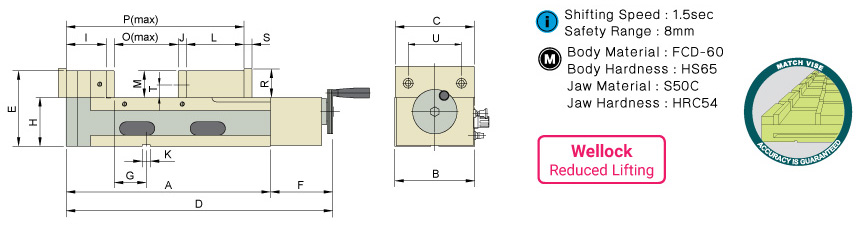

Wellock Air Power Vise drawing
Order Code A B C D E F G H I J K L M
02AMP-100 320 100 98 435 145 140 45 100 85 15 18 105 45
02AMP-150 380 130 128 520 157 140 45 105 85 15 18 110 52
02AMP-160 400 160 158 540 160 140 45 105 87 15 18 120 55
02AMP-165 490 160 158 630 160 140 45 105 87 15 18 120 55
02AMP-180 460 180 178 600 170 140 72 110 90 18 18 130 60
02AMP-200 470 200 200 610 170 140 72 110 90 18 18 140 60
02AMP-300 570 200 200 710 170 140 72 110 90 18 18 140 60
Swipe
Order Code O P R S T U Clamping
Force		 Weight
02AMP-100 100 200-300 55 18 22 60 32KN 32kg
02AMP-150 150 200-380 62 15 25 90 60KN 52kg
02AMP-160 160 210-400 62 15 25 90 60KN 58kg
02AMP-165 250 210-490 65 15 25 90 60KN 65kg
02AMP-180 200 220-460 70 18 28 120 90KN 75kg
02AMP-200 200 230-470 70 18 28 120 90KN 82kg
02AMP-300 300 230-570 70 18 28 120 90KN 93kg
